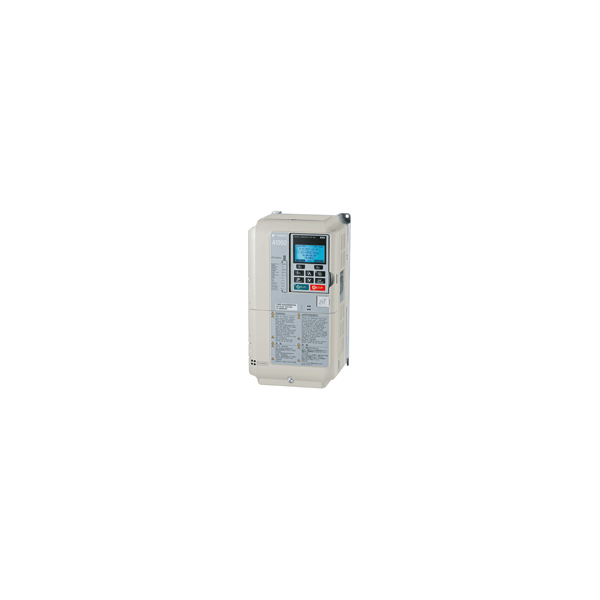

Frequency inverters A1000 multi-purpose series provides significant advantages due to the excellent characteristics of the motor control (both induction and synchronous), careful attitude to the environment and energy savings.
- V/f control, vector control, sensorless vector control
- Auto tuning
- control of synchronous and induction motors
- Overload Capacity: 150% for 60 sec. (Heavy Duty), 120% for 60 sec. (Normal Duty)
- quick parameter setup due to posibility of choosing pre-defined applications: conveyor, pump, compressor, fan, crane and others
- input/output board with parameter copy function
- PID control
- Energy saving function
- double safety inputs (according to EN954 cat. 3)
- Side-by-Side mounting
- RS-422/485 115 kbps
- IP00 or IP54
- DeviceNet, ProfiBus, CANopen, Mechatrolink II Communications and others
- keyboard with six line LCD display, support russian language
- PLC function with DriveWorksEZ Software
- DriveWizardPlus software for configuration and accurate adjustment
Specifications
| Manufacturer: | Yaskawa |
| Series: | A1000 |
| Model: | CIMR-AC4A0011FAA |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 5,5 |
| Current, А: | 11.1 |
| Main power supply, V: | 400 |
| Phase: | 3 |
| Output frequency, Hz: | 0.01-400 |
| Enclosure: | NEMA1 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | option |
| Braking unit: | option |
| Analog input: | 3 |
| Digital input: | 8 |
| Analog output: | 2 |
| Digital output: | – |
| Relay output: | 3 |
| RS485 (Modbus RTU): | RS485/422 |
| Starting torque: | 200% |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 140х260х164 |
| Weight, kg: | 3,5 |
