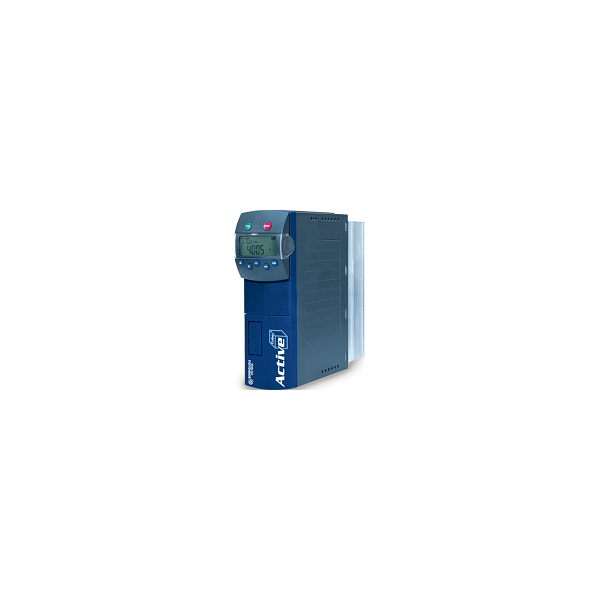

Bonfiglioli Active Cube series are specifically designed for automation machines. It includes many features making it suitable for universal use in a wide range of industrial sectors, both as an effective “System drive”, and also as a “Servo drive”. Optimized combination with Bonfiglioli BTD and BCR servomotor series.
Easy and powerful engineering software for parameter setting, diagnostic and aided commissioning. The modular hardware and software structure enables customer-specific adaptation of the frequency inverters. Applications with high functionality and dynamism requirements can be realized easily.
- Full set of operation modes, freely selectable:
– servo synchronous control with resolver feedback
– field oriented (vector) control with absolute encoder speed/sensor
– sensorless field oriented (vector) control - Plug in control terminals for easy and fast connection
- Plug in power terminals up to 4 kW
- DC link bus for “energy sharing” in multidrive system architectures
- Integral EMI filters (depends on model)
- Integrated brake transistor on all sizes
- Integrated “safe Torque Off” function
- External 24V supply input for control board supply from backup systems
- Motor thermal evaluation
- Position and speed feedback input (encoder/resolver)
- Several mechanical mounting modes available: Din rail mounting, pass through mounting, side mounting
- Proprietary fieldbus (System bus) for fast communication among Bonfiglioli Active Cube drives
Specifications
| Manufacturer: | Bonfiglioli |
| Series: | Active Cube |
| Model: | ACU210-13 FA |
| Product Code: | ACU-210132FASBXSW0 |
| Application: | general purpose |
| Capacity, kW: | 2.2 |
| Current, А: | 9.5 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | + |
| RS485 (Modbus RTU): | + |
| PID: | PI – controller |
| Vector control with feedback: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | 0…40 (40…55 with derating) |
| Dimensions (W x H x D), mm: | 60x250x175 |
| Weight, kg: | 1.6 |
