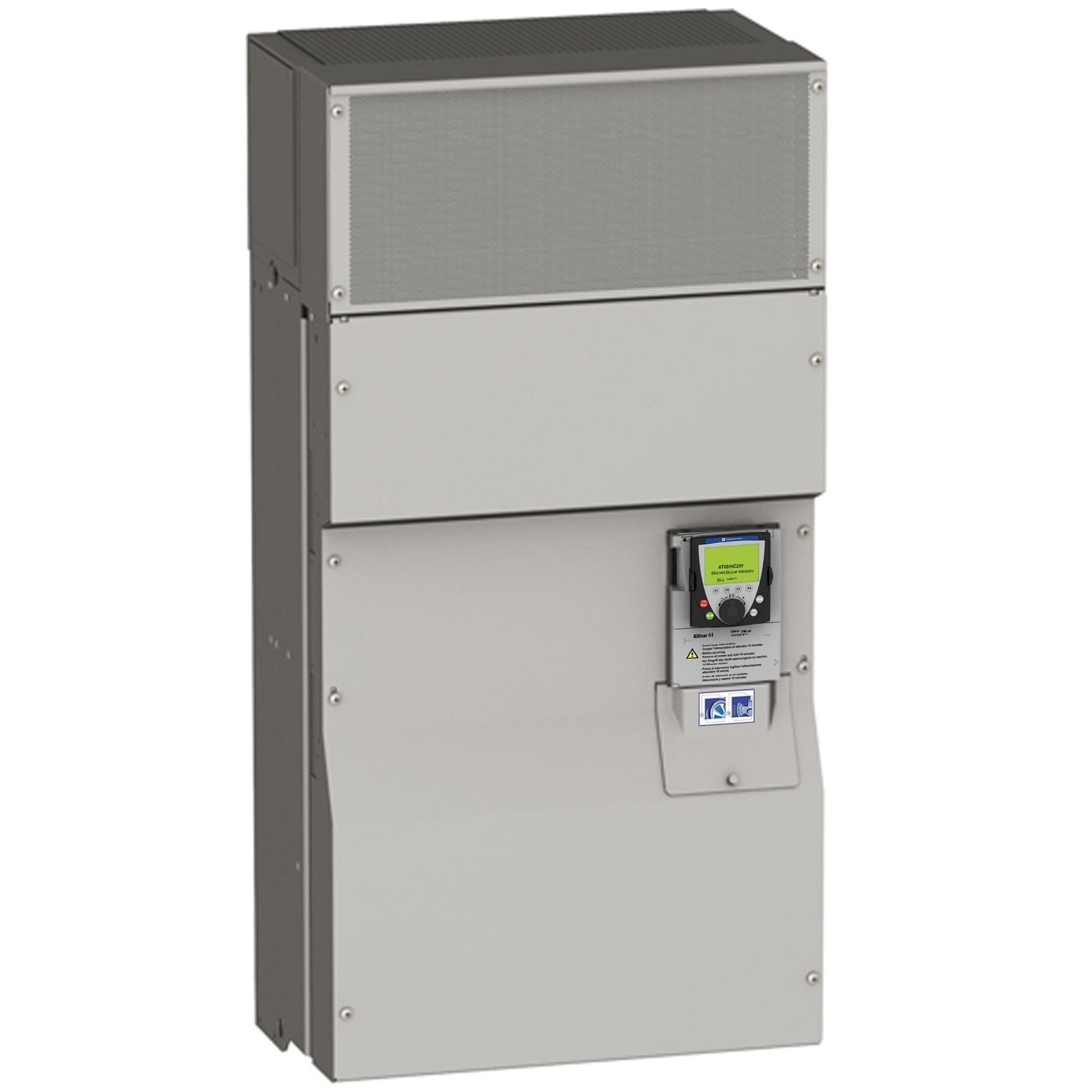

ATV61 690V 132kW WITHOUT TRANSFORMER speed
Manufacturer: Schneider Electric
Part Number: ATV61HC13YT
Key Specifications
| Range of Product | Altivar 61 |
| Motor power kW | 110 kW, 3 phase 500 V | 132 kW, 3 phase 690 V |
| Maximum Horse Power Rating | 150 hp, 3 phase 575 V |
| power supply voltage | 500…690 V – 15…10 % |
| supply number of phases | 3 phase |
| Line current | 133 A 600 V 3 phase 110 kW / 150 hp | 137 A 690 V 3 phase 110 kW / 150 hp | 153 A 500 V 3 phase 110 kW / 150 hp |
| Maximum transient current | 198 A 60 s, 3 phase |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…4.9 kHz adjustable | 2.5…4.9 kHz with derating factor |
| power supply voltage limits | 425…759 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 144 A 2.5 kHz, 575 V – 3 phase | 150 A 2.5 kHz, 690 V – 3 phase | 165 A 2.5 kHz, 500 V – 3 phase |
| Output frequency | 0.1…500 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC | With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms | R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms | R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms | R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Frequency resolution | Analog input 0.024/50 Hz | Display unit 0.1 Hz |
| Net Weight | 224.9 lb(US) (102 kg) |
| Package weight(Lbs) | 253.5 lb(US) (115 kg) |
