M430 series of frequency inverter has a sensorless vector control and a wide range of high-performance features. It is designed for general industrial applications, as well as the HVAC systems and pump control.
- Capacity range: 0,75~75 kW
- Voltage range: 323~437 V
- Built-in braking resistor up to 18,5 kW (included)
- Build-in PID control
- Standard RS485 communication function (ModBus)
- Protective structure IP20
- Eight digital input terminals
- Protective functions: overheat, over current, phase loss protection
- Operation Place: indoor,hide sunshine,no dust, corrosive gas, combustible gas, oil mist, water vapor, salinity
Specifications
| Manufacturer: | Advanced Control |
| Series: | M430 |

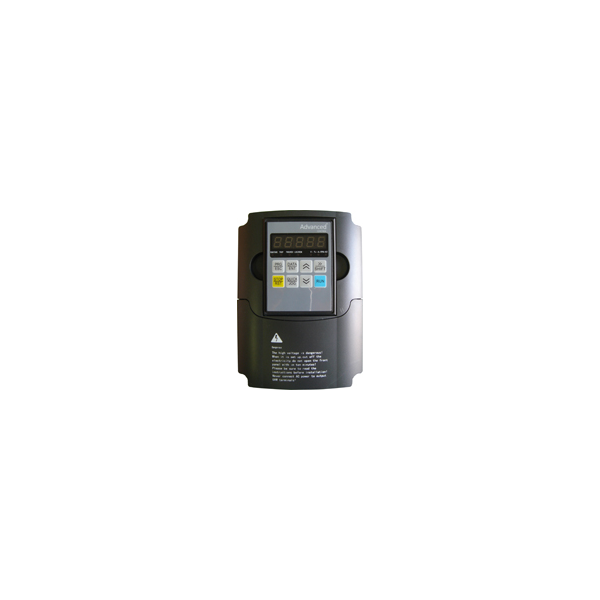

| Model: | ADV 18.5 M430-M |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 18.5 |
| Current, А: | 37 |
| Main power supply, V: | 380 |
| Phase: | 3 |
| Output frequency, Hz: | 400 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150%; 120% – pumping application |
| Acceleration time, sec: | 0,1-3600 |
| Deceleration time, sec: | 0,1-3600 |
| EMC filter: | – |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 8 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 150% |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 218x302x216 |
| Weight, kg: | 6,6 |
