Frequency inverters with vector control have high accuracy, reliability, wide range of functions and good performance. They are used for general purposes with small capacity induction motors.
- Capacity range: 0,4 ~ 1.5kW
- Supply voltage: 220V (1 phase)
- Overload capacity 150% / 1min
- Build-in PID control
- Standard RS485 communication function (ModBUS RTU)
- Build-in brake unit
- Auto voltage regulation (AVR)
- Protective functions: overload, overvoltage, undervoltage, overheat, short circuit, over current, phase loss protection (input/output), etc.
- Special function for winding
Specifications
| Manufacturer: | Advanced Control |
| Series: | C220 |

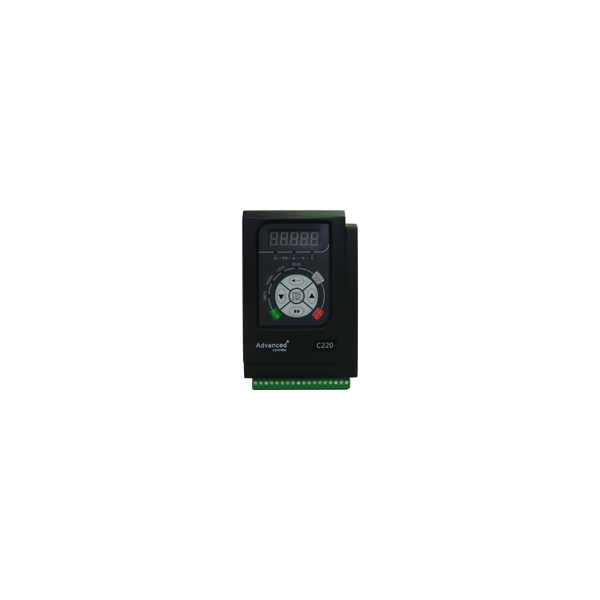

| Model: | ADV 0.75 C220-M |
| Application: | general purpose |
| Capacity, kW: | 0.75 |
| Current, А: | 4 |
| Main power supply, V: | 187-264 |
| Phase: | 1 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-3000 |
| Deceleration time, sec: | 0-3000 |
| EMC filter: | – |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| Starting torque: | 180% |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+40 (+50 with derating) |
| Storage temperature, °С: | -20……+60 |
| Dimensions (W x H x D), mm: | 80x130x128.3 |
