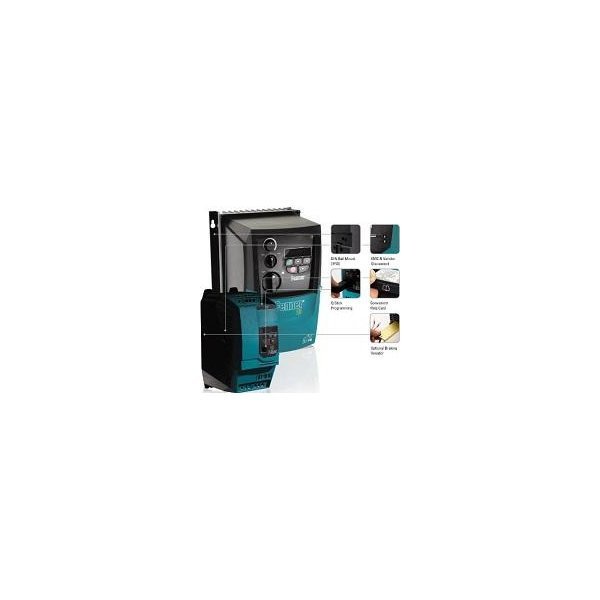

Fenner QD:E frequency inverter is a value packed basic drive ideally suited for low power applications that require “best in class” purchase value. Operating from a small space saving envelope the QD:E is fast to set-up, simple to use and suitable for most applications.
- Easy to install
- Simple keypad control
- 50°C ambient rating for hot, tough applications
- Free lifetime technical support
- Energy optimising function
- Simple commissioning, 12 basic parameter settings, default settings suitable for most applications
- Internal RFI filter for full EMC compliance
- Modbus RTU allows easy integration with your control and monitoring systems
- Compact enclosures help minimise your space requirements
- Brake chopper on sizes 2 & 3, dynamic and compact options with heatsink mounted resistor
- High overload capacity, 150% overload for 60 seconds and 170% overload for 2 seconds
Specifications
| Manufacturer: | Fenner |
| Series: | QD:E |
| Model: | 576B44P0 |
| Application: | general purpose |
| Capacity, kW: | 4 |
| Current, А: | 9.5 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-500 |
| Enclosure: | IP66 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | Internal RFI filter for full EMC compliance |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 2 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -40…..+60 |
| Dimensions (W x H x D), mm: | 188x257x186,5 |
