Applicable for different motor technologies and functionally prepared for the drive tasks of speed, torque and position control – these are the COMBIVERT F6 drive controllers for powers from 4 kW to 450 kW. They support the implementation of new machine concepts with extended requirements for performance, communication and integrated safety. The concept is all-in-one – which means that in addition to universal motor operating modes for sensor-actuated or sensor-less motors, the drive controllers enable flexible connection to the higher-level control level via EtherCAT, Profinet, Powerlink, Ethernet/IP and CAN and provide all proven speed and position feedback on the two encoder channels in one hardware. The device variant Application is available in two versions. In addition to STO, Module 1 adds safe brake control (SBC) which provides a safe 24 V supply for the brakes.
- Integrated Safety functionality
- Additional High Level Safety in Application version
- Control for synchronous, asynchronous, IPM or synchronous reluctance motors
- Motor operation with encoder feedback or encoderless ASCL/SCL for precise speed control
- Motor temperature monitoring with PTC, KTY or PT1000 sensors
- Two-channel multi-encoder interface
- Integrated GTR7 brake transistor
- Integrated brake control and brake supply
- Real-time Ethernet-based interfaces
- Real-time communication
- CAN, RS232/485 for diagnostics or display
- Universally usable for every motor technology
- Highest performance in torque, speed and position control
- Uncompromising integration
Specifications
| Manufacturer: | KEB |
| Series: | F6 APPLICATION |

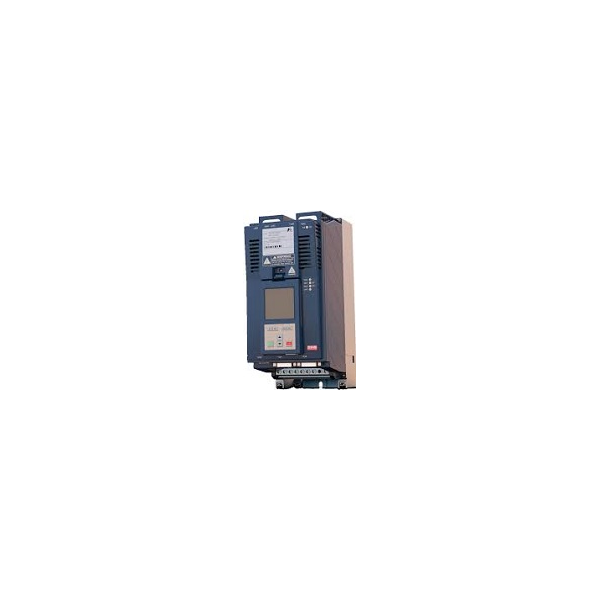

| Model: | 21F6A16-3613 |
| Application: | general purpose |
| Capacity, kW: | 45 |
| Current, А: | 90 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-599 |
| Enclosure: | IP54 |
| Overload capacity, % per 1 min.: | 150/180 |
| EMC filter: | optional |
| Braking unit: | braking resistors, DC braking |
| Analog input: | 2 |
| Digital input: | 8 |
| Analog output: | 1 |
| Digital output: | 2 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | RS232/485, EtherCAT / CAN with STO, SBC |
| PID: | PID control |
| V/f control mode: | + |
| Dimensions (W x H x D), mm: | 249x525x272 |
