PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.
- Two-phase controlled soft start
- Integrated by-pass relay
- Reduction of starting current peaks
- DC braking
- Integrated braking contactor
- Integrated standstill detection
- Monitoring of stopping time
- Suitable for all asynchronous motors
- Suitable for IE1, IE2 and IE3 motors
- Self-optimizing soft start and braking
- CANopen on board
- Degree of protection IP20
- Plugable push-in control terminals
- Meets trad assoc. requirements for PL =c, acc. to EN13849-1:2008
Specifications
| Manufacturer: | Peter Electronic |
| Series: | VC II Safe |

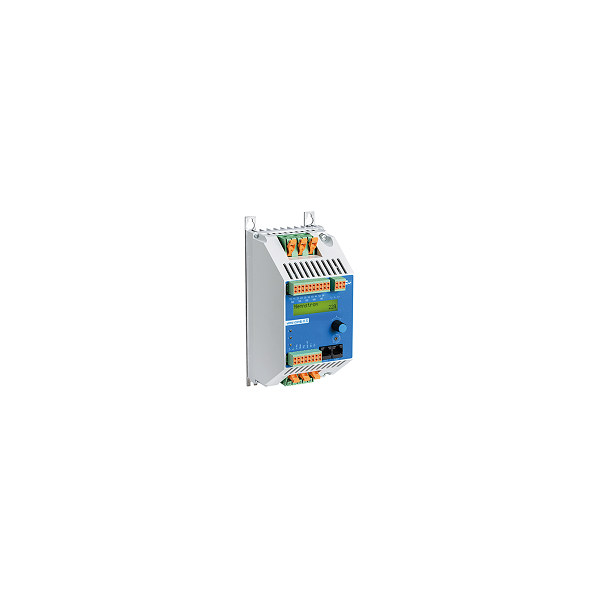

| Model: | VC II S 480/575-12 |
| Application: | general purpose |
| Capacity, kW: | 1.5-4 |
| Current, А: | 12 |
| Main power supply, V: | 400 |
| Phase: | 2 |
| Enclosure: | IP20 |
| Weight, kg: | 1,45 |
| DC braking: | + |
