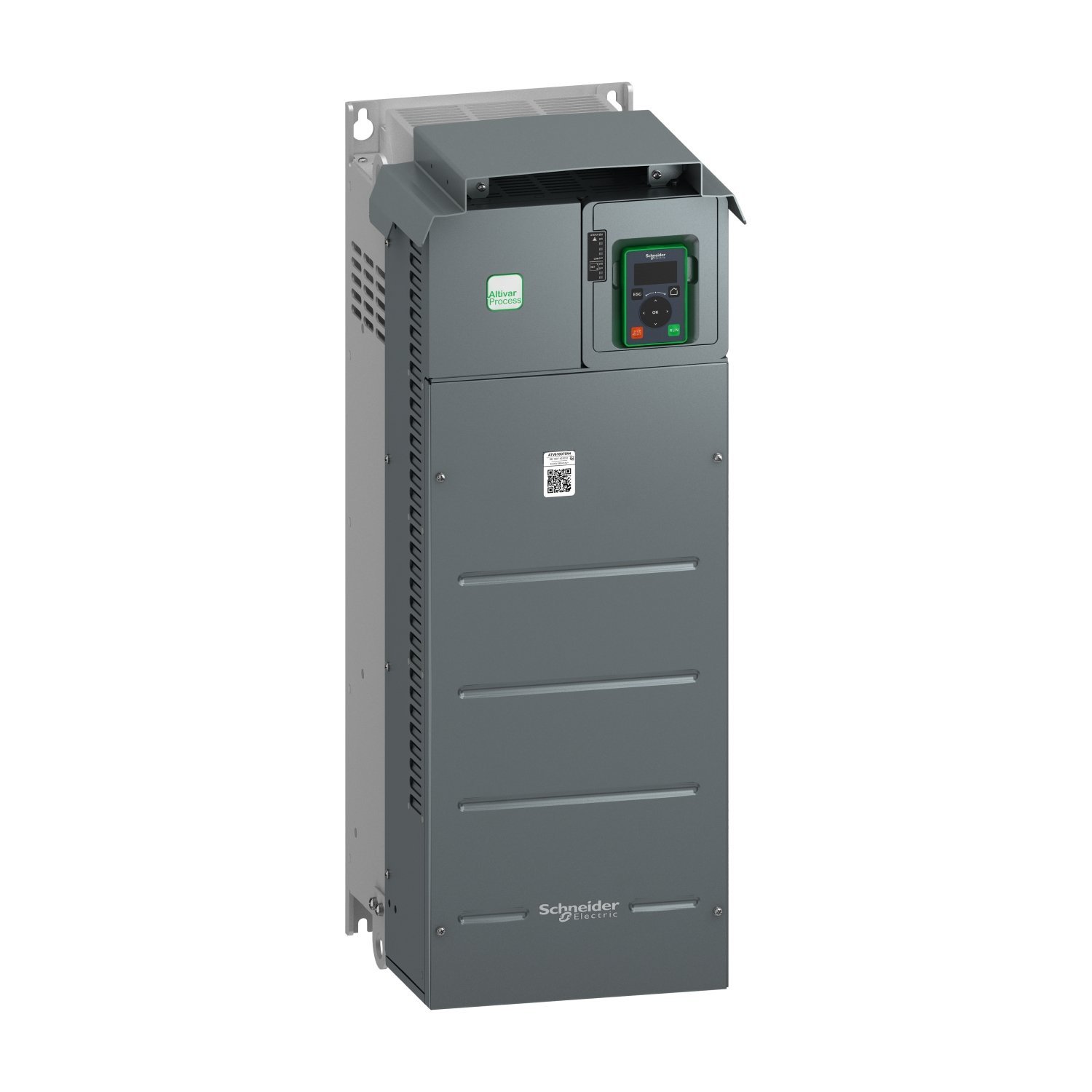

variable speed drive, Easy Altivar 610, 75kW, 100hp, 380 to 460V, IP20
Manufacturer: Schneider Electric
Part Number: ATV610D75N4
Key Specifications
| Range of product | Easy Altivar 610 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP20 |
| Supply frequency | 50…60 Hz +/-5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| Motor power kW | 75 kW for normal duty | 55 kW for heavy duty |
| Motor power hp | 100 hp for normal duty | 75 hp for heavy duty |
| Line current | 147.9 A at 380 V (normal duty) | 130.2 A at 460 V (normal duty) | 115.8 A at 380 V (heavy duty) | 101.7 A at 460 V (heavy duty) |
| Apparent power | 103.7 kVA at 460 V (normal duty) | 81.0 kVA at 460 V (heavy duty) |
| Continuous output current | 145 A at 2.5 kHz for normal duty | 106 A at 2.5 kHz for heavy duty |
| Maximum transient current | 160 A during 60 s (normal duty) | 159 A during 60 s (heavy duty) |
| Output frequency | 0.1…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 1…8 kHz adjustable |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Net weight | 53 kg |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Power dissipation in W | 1460 W(forced convection) at 380 V, switching frequency 2.5 kHz | 177 W(natural convection) at 380 V, switching frequency 2.5 kHz |
| Package 1 Weight | 70.500 kg |
