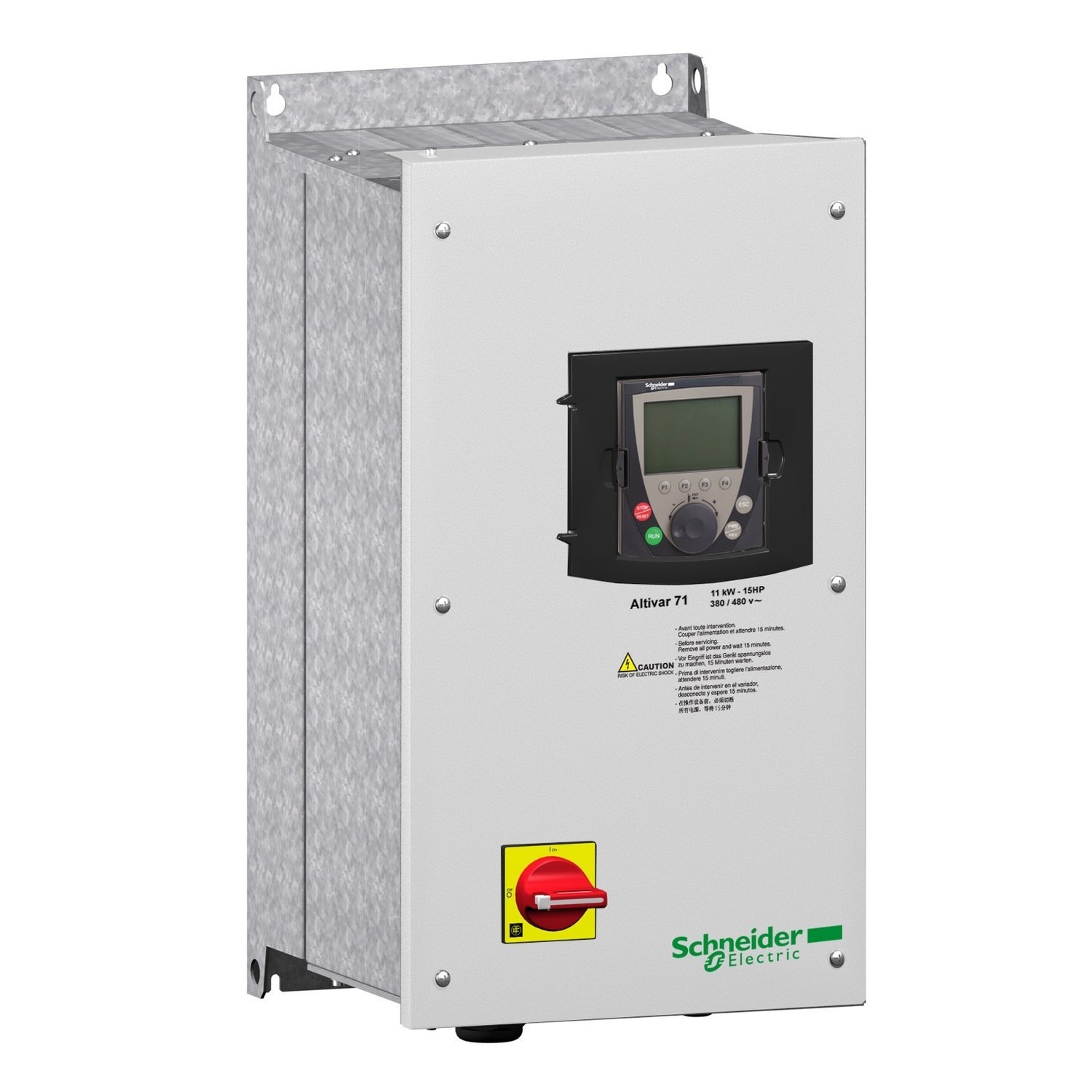

variable speed drive ATV71 – 37kW 50HP – 480V – EMC filter – IP54
Manufacturer: Telemecanique
Part Number: ATV71E5D37N4
EAN: 3389119213257
Key Specifications
| Range of product | Altivar 71 |
| Motor power kW | 37 kW |
| Motor power hp | 50 hp |
| power supply voltage | 380…480 V – 15…10 % |
| Network number of phases | 3 phases |
| Line current | 69 A at 480 V | 84 A at 380 V |
| Apparent power | 55.3 kVA at 380 V |
| Maximum transient current | 130 A for 2 s | 118.5 A for 60 s |
| Speed drive output frequency | 0…1600 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 1…16 kHz adjustable | 2.5…16 kHz with derating factor |
| power supply voltage limits | 323…528 V |
| power supply frequency | 50…60 Hz +/- 5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 65 A at 2.5 kHz, 460 V | 79 A at 2.5 kHz, 380 V |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | With NEMA Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 2 A at 250 V AC on inductive load – cos phi = 0.4 (R1, R2) | 2 A at 30 V DC on inductive load – cos phi = 0.4 (R1, R2) | 5 A at 250 V AC on resistive load – cos phi = 1 (R1, R2) | 5 A at 30 V DC on resistive load – cos phi = 1 (R1, R2) |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 57.8 kg |
| IP degree of protection | IP54 |
| Package 1 Weight | 86.0 kg |
