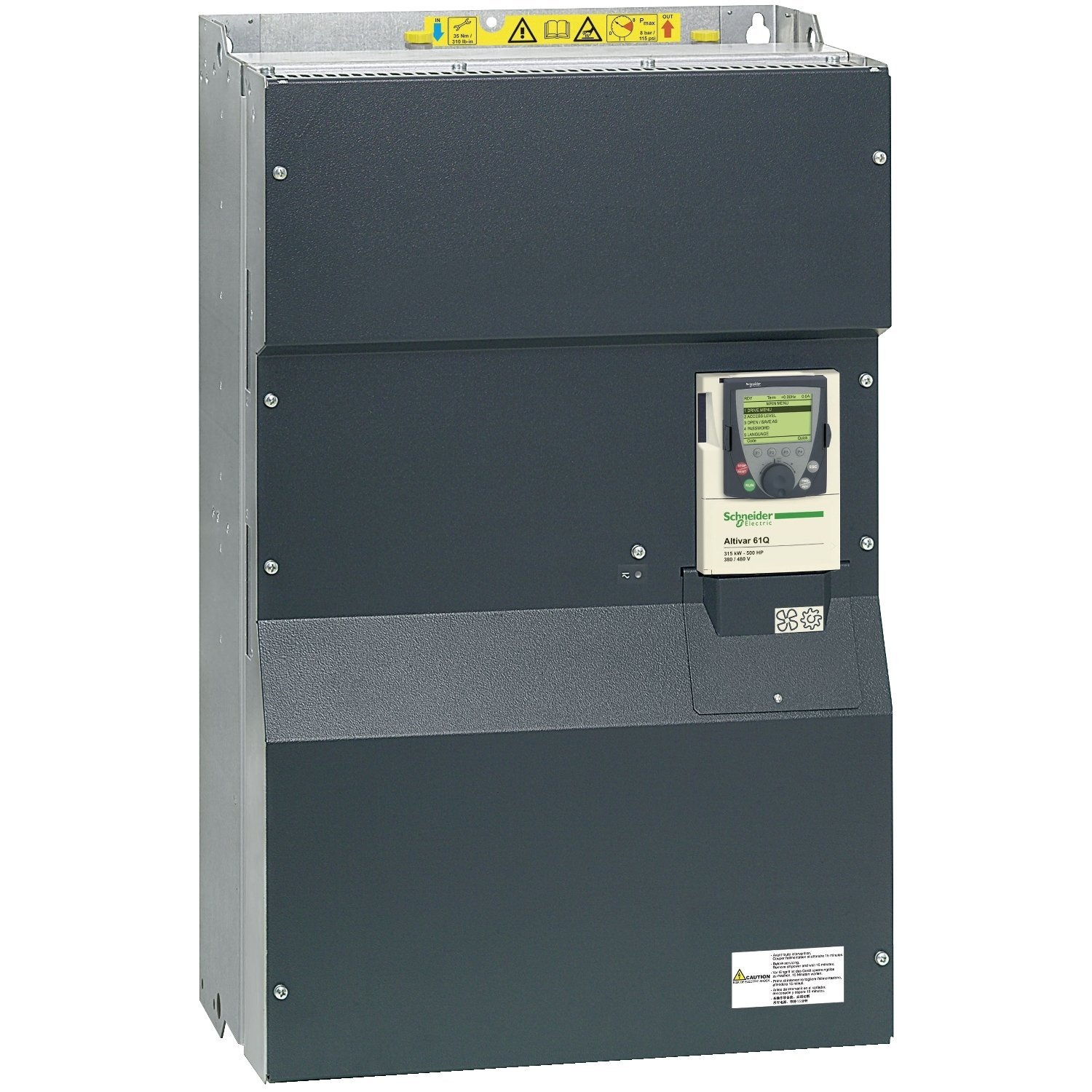

variable speed drive ATV61Q – 800kW / 800HP – 500…690V – IP20
Manufacturer: Schneider Electric
Part Number: ATV61QC80Y
EAN: 3606480389498
Key Specifications
| Range of product | Altivar 61Q |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 500…690 V – 15…10 % |
| Supply voltage limits | 425…759 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency limits | 47.5…63 Hz |
| Motor power kW | 630 kW, 3 phases at 500 V | 800 kW, 3 phases at 690 V |
| Motor power hp | 800 hp, 3 phases at 575 V |
| Line current | 771 A for 600 V 3 phases 630 kW / 800 hp | 775 A for 690 V 3 phases 630 kW / 800 hp | 847 A for 500 V 3 phases 630 kW / 800 hp |
| Continuous output current | 840 A at 2.5 kHz, 575 V – 3 phases | 840 A at 2.5 kHz, 690 V – 3 phases | 900 A at 2.5 kHz, 500 V – 3 phases |
| Maximum transient current | 1080 A for 60 s, 3 phases |
| Speed drive output frequency | 0.1…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2…4.9 kHz adjustable | 2.5…4.9 kHz with derating factor |
| Output voltage | <= power supply voltage |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1, R2) | 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (R1, R2) | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (R1, R2) | 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (R1, R2) |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 300 kg |
| IP degree of protection | IP00 conforming to EN/IEC 60529 | IP00 conforming to EN/IEC 61800-5-1 | IP30 on side parts conforming to EN/IEC 60529 | IP30 on side parts conforming to EN/IEC 61800-5-1 | IP30 on the front panel conforming to EN/IEC 60529 | IP30 on the front panel conforming to EN/IEC 61800-5-1 | IP41 on upper part conforming to EN/IEC 60529 | IP41 on upper part conforming to EN/IEC 61800-5-1 |
| Package 1 Weight | 370.0 kg |
