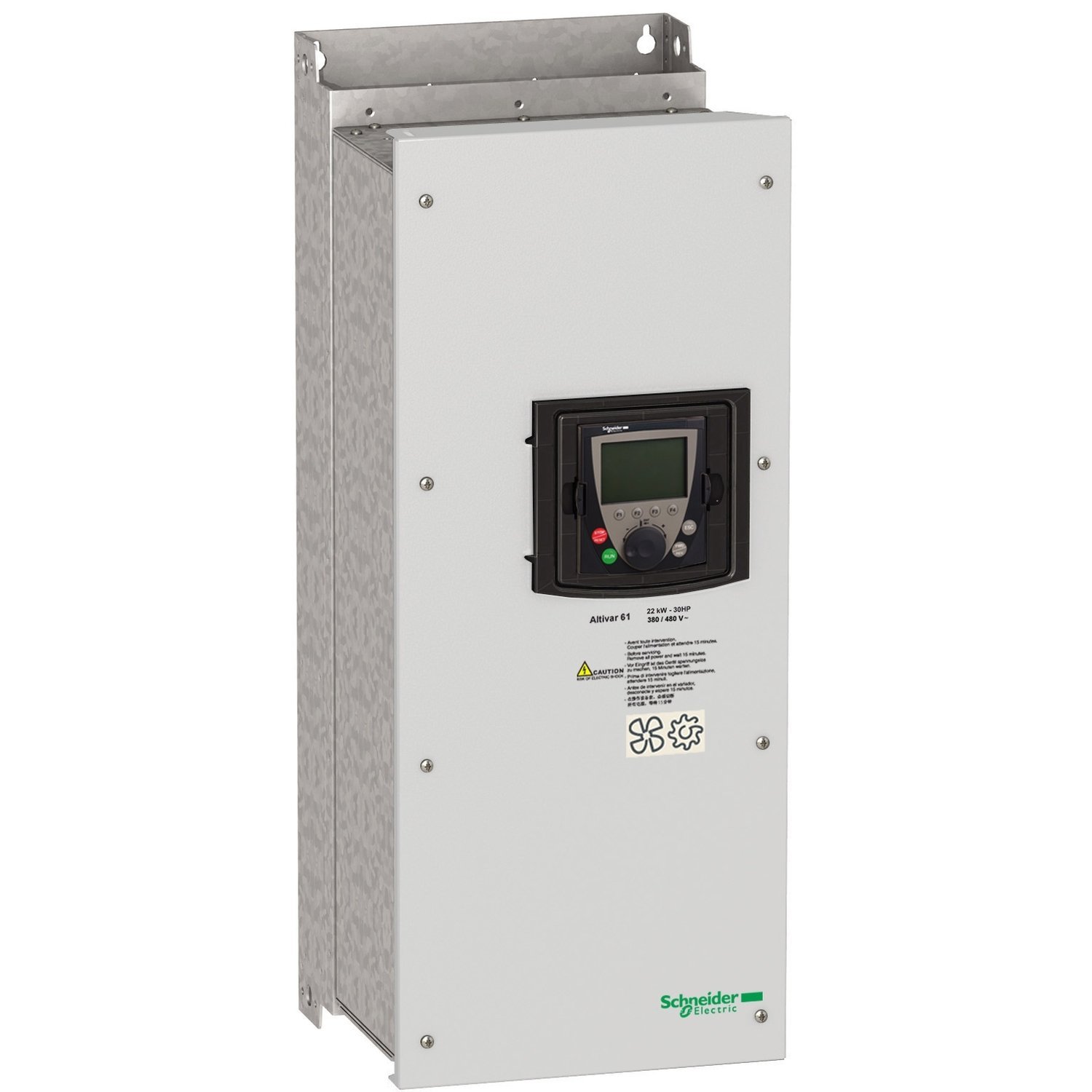

variable speed drive ATV61 – 7.5kW 10HP- 380…480V – EMC filter – IP54
Manufacturer: Telemecanique
Part Number: ATV61WU75N4A24
EAN: 3389118162167
Key Specifications
| Range of product | Altivar 61 |
| Motor power kW | 7.5 kW, 3 phases at 380…480 V |
| Motor power hp | 10 hp, 3 phases at 380…480 V |
| power supply voltage | 380…480 V – 15…10 % |
| supply number of phases | 3 phases |
| Line current | 13.3 A for 480 V 3 phases 7.5 kW / 10 hp | 15.8 A for 380 V 3 phases 7.5 kW / 10 hp |
| Apparent power | 10.4 kVA at 380 V 3 phases 7.5 kW / 10 hp |
| Maximum transient current | 17.6 A for 60 s, 3 phases |
| Nominal switching frequency | 8 kHz |
| Switching frequency | 2…16 kHz adjustable | 8…16 kHz with derating factor |
| power supply voltage limits | 323…528 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 14 A at 8 kHz, 460 V – 3 phases | 16 A at 8 kHz, 380 V – 3 phases |
| Output frequency | 0.1…599 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 22 kg |
