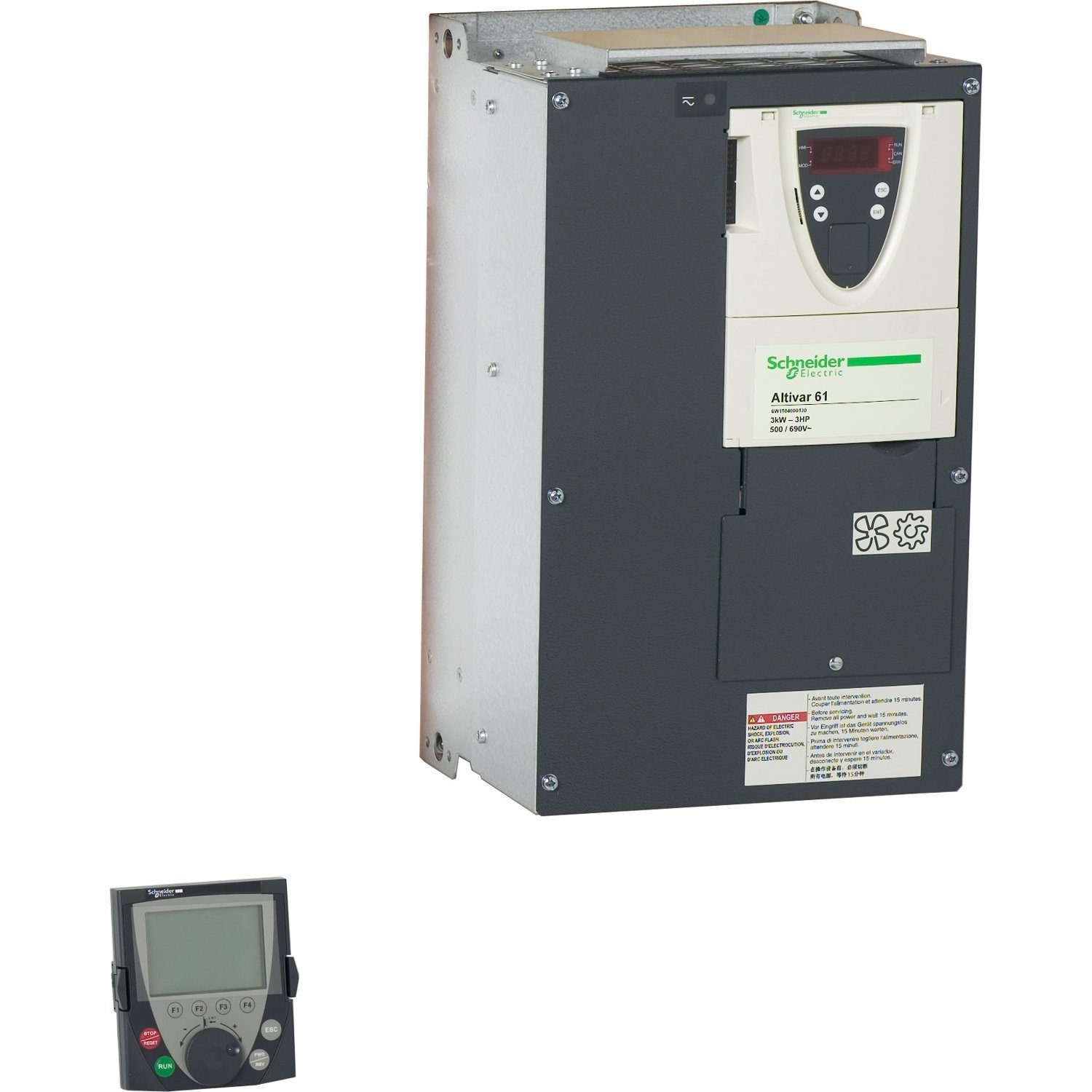

variable speed drive ATV61 – 3kW / 690V – 3HP / 575V – IP20
Manufacturer: Telemecanique
Part Number: ATV61HU30Y
EAN: 3389119214650
Key Specifications
| Range of product | Altivar 61 |
| Motor power kW | 2.2 kW, 3 phases at 500 V | 3 kW, 3 phases at 690 V |
| Motor power hp | 3 hp, 3 phases at 575 V |
| power supply voltage | 500…690 V – 15…10 % |
| supply number of phases | 3 phases |
| Line current | 4.4 A for 600 V 3 phases 2.2 kW / 3 hp | 5.2 A for 500 V 3 phases 2.2 kW / 3 hp | 5.2 A for 690 V 3 phases 2.2 kW / 3 hp |
| Maximum transient current | 5.4 A for 60 s, 3 phases |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2.5…6 kHz adjustable | 4…6 kHz with derating factor |
| power supply voltage limits | 425…759 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 3.9 A at 4 kHz, 575 V – 3 phases | 4.5 A at 4 kHz, 500 V – 3 phases | 4.5 A at 4 kHz, 690 V – 3 phases |
| Output frequency | 0.1…500 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 30 kg |
| Package 1 Weight | 32.0 kg |
| Package 2 Weight | 73.0 kg |
