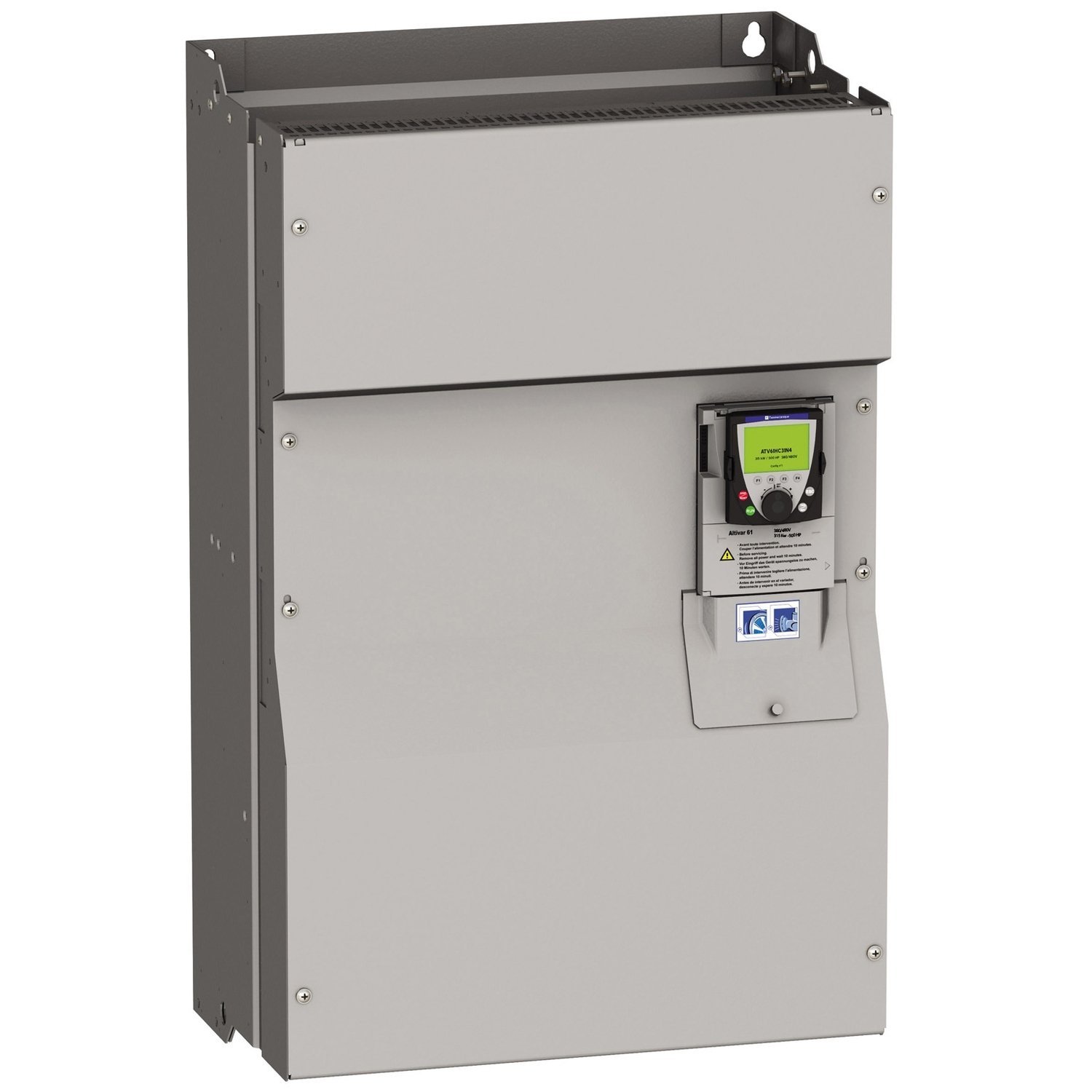

variable speed drive ATV61 – 315kW – 350HP – 500..690 V – without EMC filter
Manufacturer: Schneider Electric
Part Number: ATV61HC31Y387
EAN: 3389118323735
Key Specifications
| Range of product | Altivar 61 |
| Motor power kW | 250 kW, 3 phases at 500 V | 315 kW, 3 phases at 690 V |
| Motor power hp | 350 hp, 3 phases at 575 V |
| power supply voltage | 500…690 V – 15…10 % |
| supply number of phases | 3 phases |
| Line current | 311 A for 600 V 3 phases 250 kW / 350 hp | 317 A for 690 V 3 phases 250 kW / 350 hp | 342 A for 500 V 3 phases 250 kW / 350 hp |
| Maximum transient current | 468 A for 60 s, 3 phases |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…4.9 kHz adjustable | 2.5…4.9 kHz with derating factor |
| power supply voltage limits | 425…759 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 336 A at 2.5 kHz, 575 V – 3 phases | 355 A at 2.5 kHz, 690 V – 3 phases | 390 A at 2.5 kHz, 500 V – 3 phases |
| Output frequency | 0.1…500 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 181 kg |
| Package 1 Weight | 180.0 kg |
