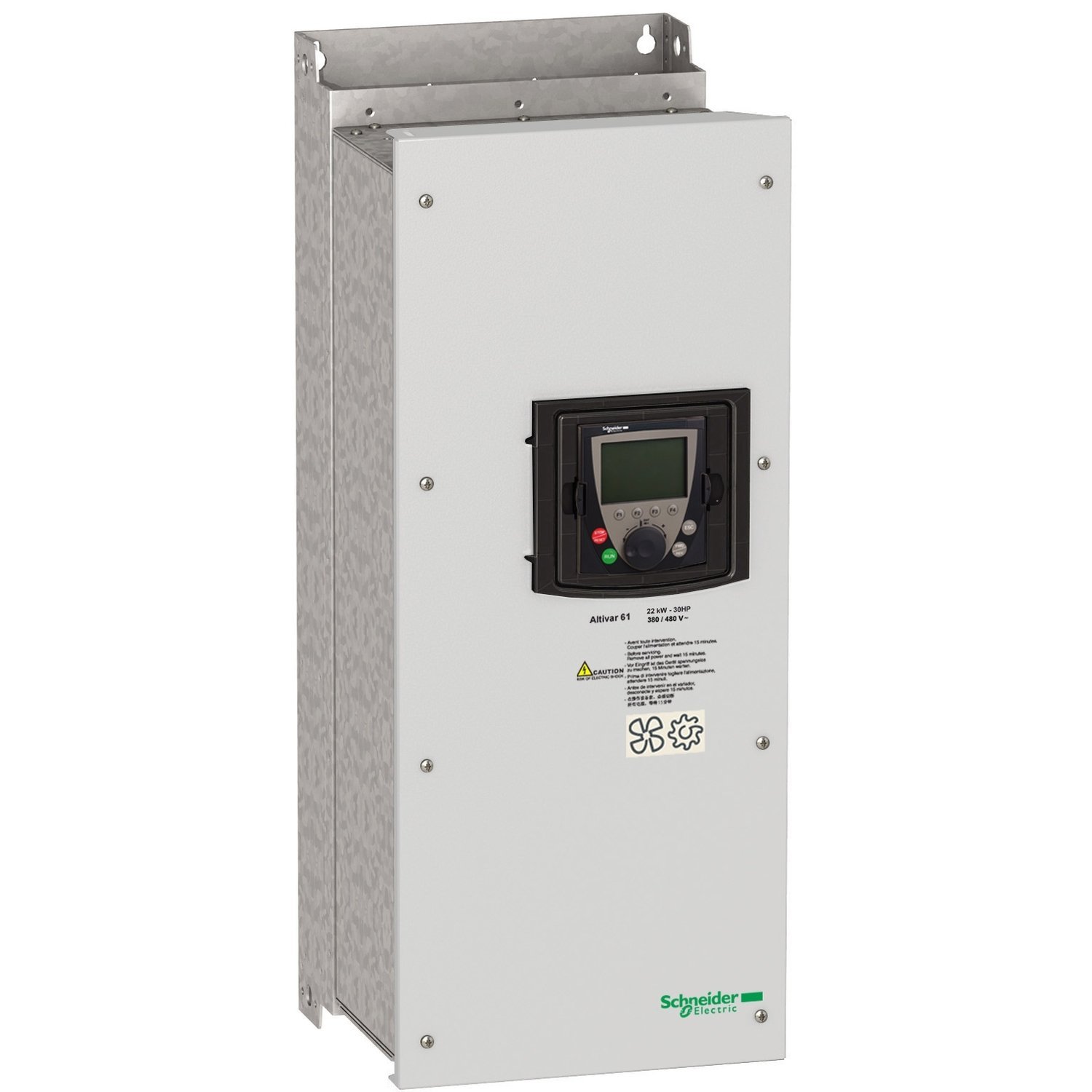

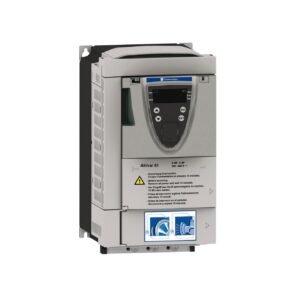

variable speed drive ATV61 – 1.8kW 25HP – 380…480V – EMC filter – IP54
Manufacturer: Telemecanique
Part Number: ATV61WD18N4U
Key Specifications
| Range of Product | Altivar 61 |
| Motor power kW | 18.5 kW, 3 phase 380…480 V |
| Maximum Horse Power Rating | 25 hp, 3 phase 380…480 V |
| power supply voltage | 380…480 V – 15…10 % |
| supply number of phases | 3 phase |
| Line current | 32.3 A 480 V 3 phase 18.5 kW / 25 hp | 37.5 A 380 V 3 phase 18.5 kW / 25 hp |
| Apparent power | 24.7 kVA 380 V 3 phase 18.5 kW / 25 hp |
| Maximum transient current | 40.7 A 60 s, 3 phase |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 8…16 kHz with derating factor |
| power supply voltage limits | 323…528 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 34 A 4 kHz, 460 V – 3 phase | 37 A 4 kHz, 380 V – 3 phase |
| Output frequency | 0.1…599 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC | With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC | Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms | R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms | R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms | R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms |
| Frequency resolution | Analog input 0.024/50 Hz | Display unit 0.1 Hz |
| Net Weight | 79.4 lb(US) (36 kg) |
