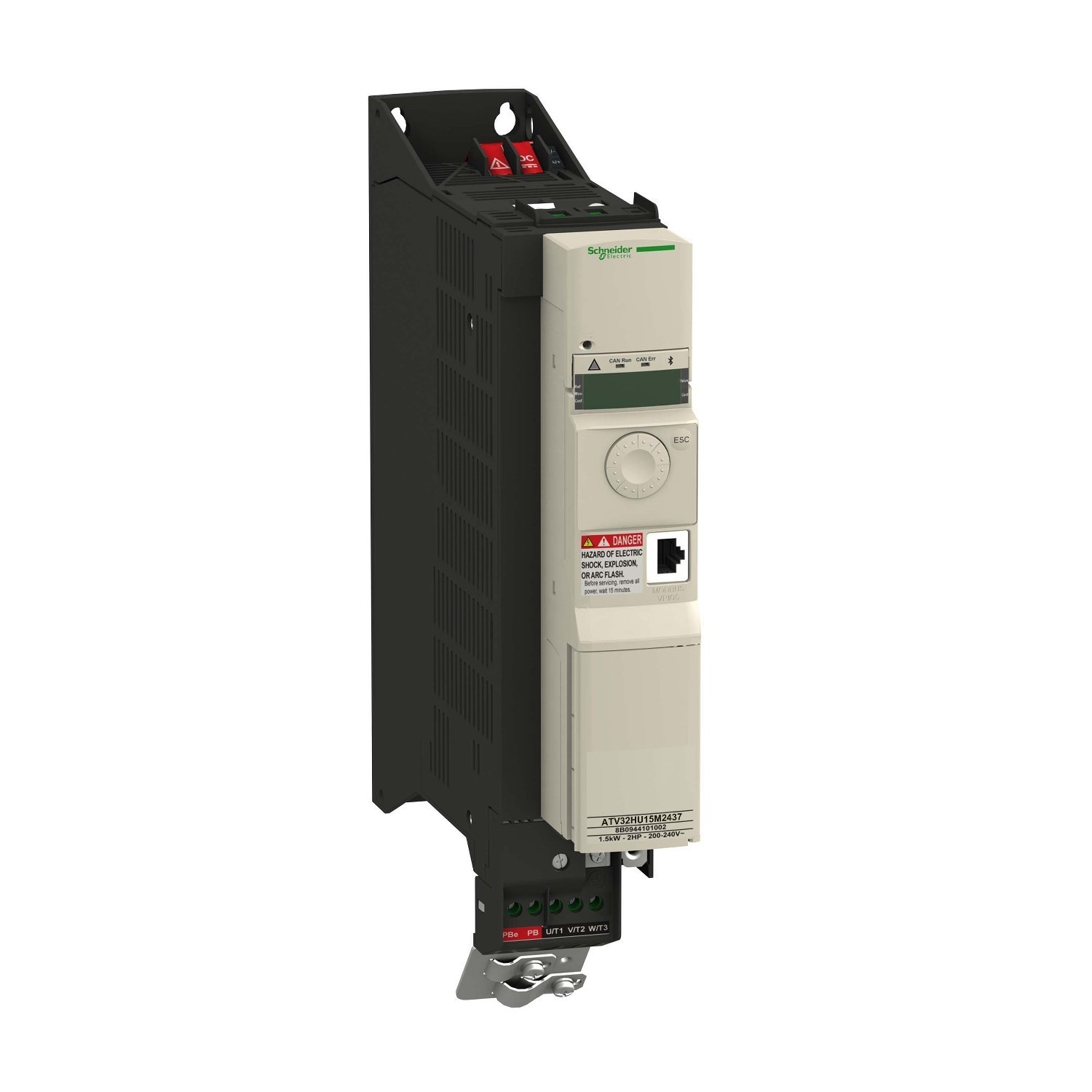

variable speed drive ATV32 – 2.2kW 200V – 1P – Bluetooth built-in – w heat sink
Manufacturer: Schneider Electric
Part Number: ATV32HU22M2437
EAN: 3606480787591
Key Specifications
| Range of product | Altivar 32 |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply voltage limits | 170…264 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Motor power kW | 2.2 kW at 200…240 V |
| Motor power hp | 3 hp at 200…240 V |
| Line current | 20.1 A for 240 V 1 phase 2.2 kW / 3 hp | 23.9 A for 200 V 1 phase 2.2 kW / 3 hp |
| Apparent power | 4.8 kVA at 240 V 1 phase 2.2 kW / 3 hp |
| Nominal output current | 11 A at 4 kHz 240 V 2.2 kW / 3 hp |
| Maximum transient current | 16.5 A for 60 s 2.2 kW / 3 hp |
| Output frequency | 0.0005…0.599 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Minimum switching current | 5 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1: 3 A at 250 V AC resistive load, cos phi = 1 | R1: 4 A at 30 V DC resistive load, cos phi = 1 | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 | R2: 5 A at 250 V AC resistive load, cos phi = 1 | R2: 5 A at 30 V DC resistive load, cos phi = 1 |
| Net weight | 2.9 kg |
| IP degree of protection | IP20 conforming to EN/IEC 61800-5-1 |
