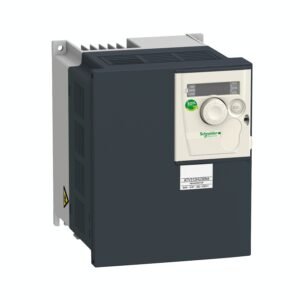

variable speed drive ATV312 – 15kW – 32kVA – 492 W – 380..500 V – 3-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312HD15N4B
EAN: 3606480162152
Key Specifications
| Motor power kW | 15 kW |
| Motor power hp | 20 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 48.2 A at 380 V, Isc = 22 kA | 36.8 A at 500 V |
| Apparent power | 32 kVA |
| Maximum transient current | 49.5 A for 60 s |
| Power dissipation in W | 492 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply voltage limits | 323…550 V |
| Continuous output current | 33 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 11 kg |
