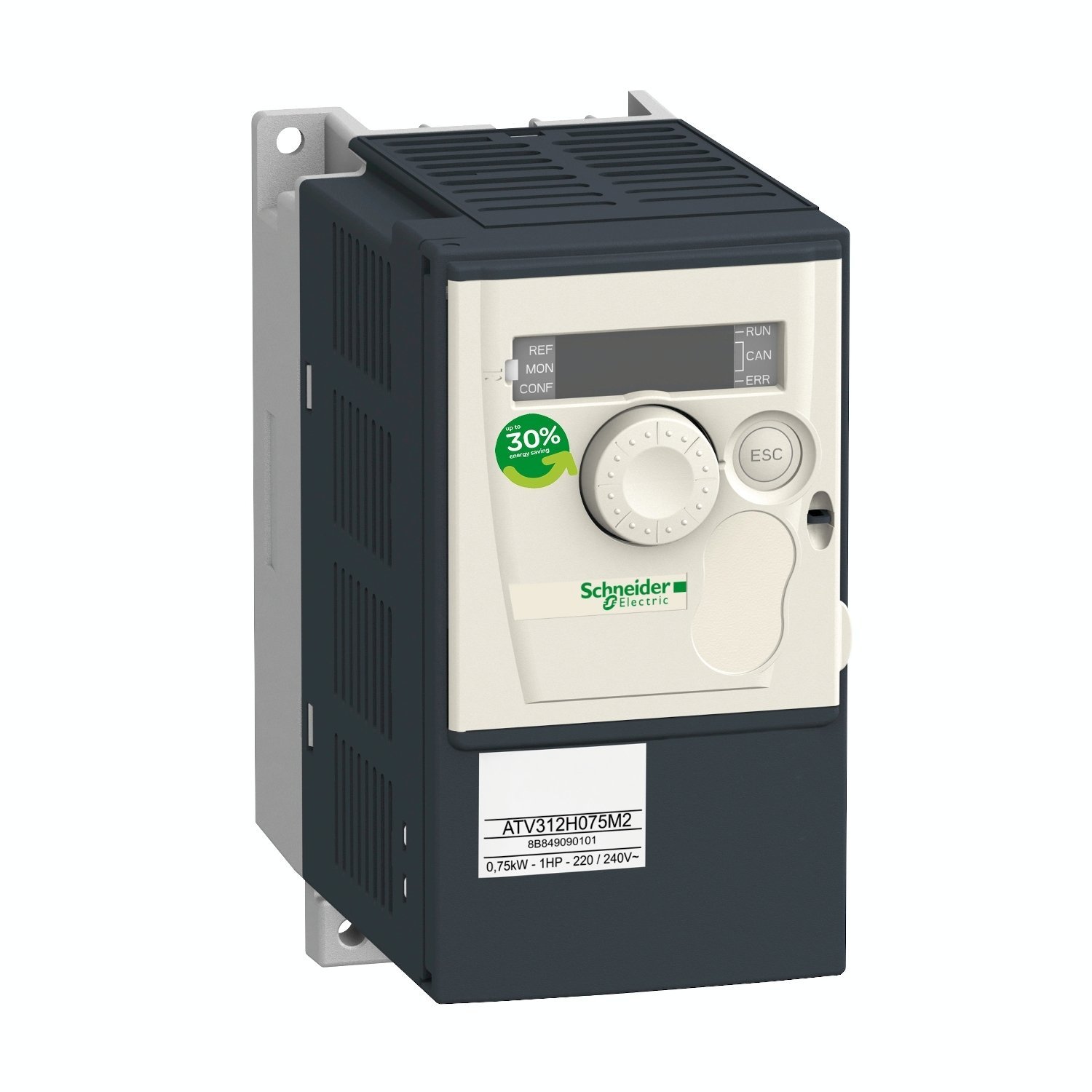

variable speed drive ATV312 – 0.75kW – 1.8kVA – 60W – 200..240 V- 1-phase supply
Manufacturer: Schneider Electric
Part Number: ATV312H075M2B
EAN: 3606480162138
Key Specifications
| Motor power kW | 0.75 kW |
| Motor power hp | 1 hp |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | Single phase |
| Line current | 8.9 A at 200 V, Isc = 1 kA | 7.5 A at 240 V |
| Apparent power | 1.8 kVA |
| Maximum transient current | 7.2 A for 60 s |
| Power dissipation in W | 60 W at nominal load |
| IP degree of protection | IP20 on upper part without cover plate | IP21 on connection terminals | IP31 on upper part | IP41 on upper part |
| Range of product | Altivar 312 |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply voltage limits | 170…264 V |
| Continuous output current | 4.8 A at 4 kHz |
| Output frequency | 0…500 Hz |
| Switching frequency | 2…16 kHz adjustable |
| Output voltage | <= power supply voltage |
| Frequency resolution | Analog input: 0.1…100 Hz | Display unit: 0.1 Hz |
| Nominal switching frequency | 4 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 1.5 kg |
