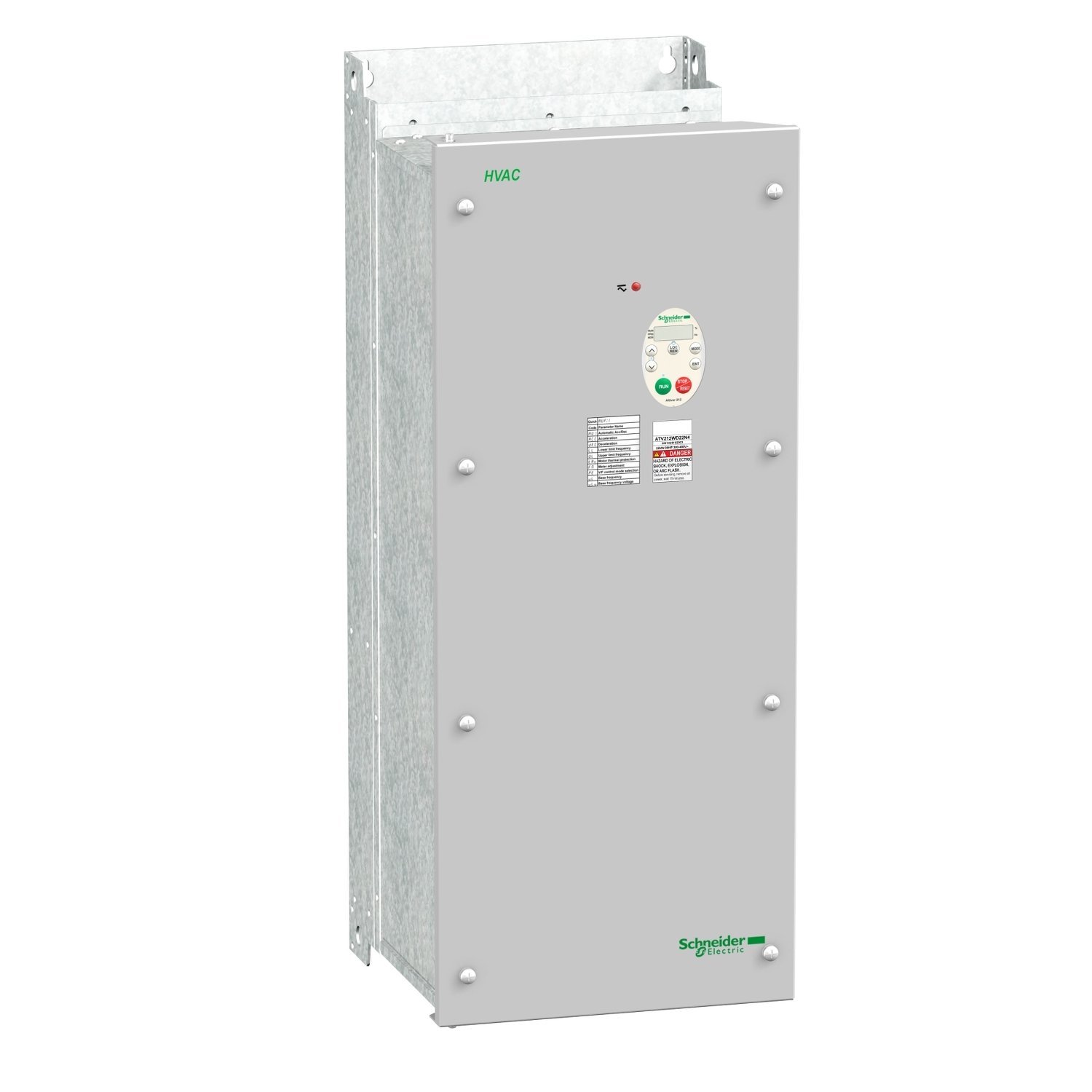

variable speed drive ATV212 – 30kW – 40hp – 480V – 3ph – EMC class C2 – IP55
Manufacturer: Schneider Electric
Part Number: ATV212WD30N4
EAN: 3606480322273
Key Specifications
| Network number of phases | 3 phases |
| Motor power kW | 30 kW |
| Motor power hp | 40 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Line current | 44.7 A at 480 V | 56.7 A at 380 V |
| Range of product | Altivar 212 |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| IP degree of protection | IP55 conforming to IEC 61800-5-1 | IP55 conforming to IEC 60529 |
| Apparent power | 44.6 kVA at 380 V |
| Continuous output current | 58.5 A at 380 V | 58.5 A at 460 V |
| Maximum transient current | 64.4 A for 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Output voltage | <= power supply voltage |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) | 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) | 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) | 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.024/50 Hz |
| Switching frequency | 6…16 kHz adjustable | 8…16 kHz with derating factor |
| Nominal switching frequency | 8 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 49.5 kg |
| Package 1 Weight | 34.0 kg |
