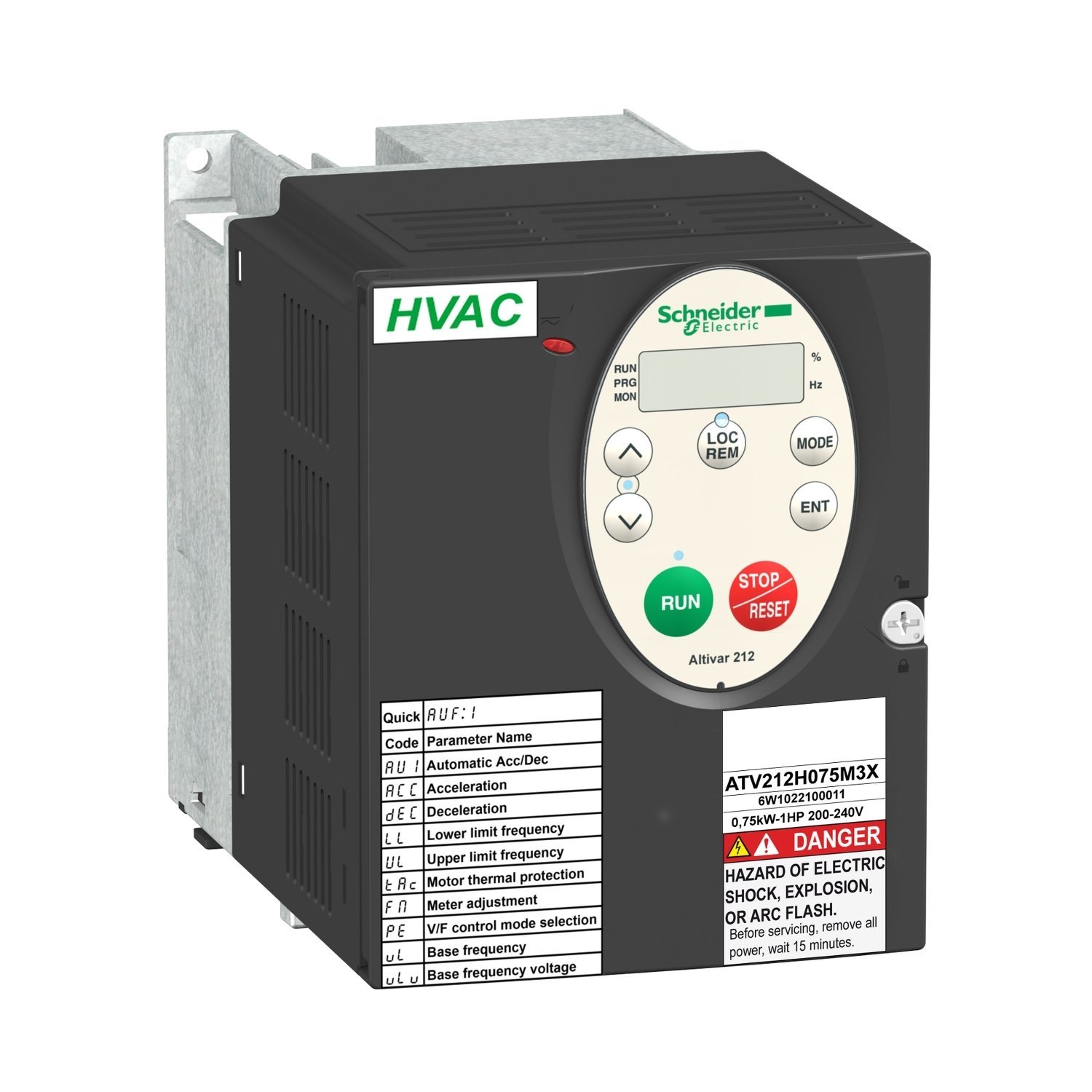

variable speed drive ATV212 – 2.2kW – 3hp – 240V – 3ph – wo EMC – IP21
Manufacturer: Schneider Electric
Part Number: ATV212HU22M3X
EAN: 3606480322341
Key Specifications
| Network number of phases | 3 phases |
| Motor power kW | 2.2 kW |
| Motor power hp | 3 hp |
| Supply voltage limits | 170…264 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Line current | 7.3 A at 240 V | 8.7 A at 200 V |
| Range of product | Altivar 212 |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| IP degree of protection | IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1 | IP20 on upper part without blanking plate on cover conforming to IEC 60529 | IP21 conforming to IEC 61800-5-1 | IP21 conforming to IEC 60529 | IP41 on upper part conforming to IEC 61800-5-1 | IP41 on upper part conforming to IEC 60529 |
| Apparent power | 4 kVA at 240 V |
| Continuous output current | 10.6 A at 230 V |
| Maximum transient current | 11.7 A for 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Output voltage | <= power supply voltage |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) | 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) | 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) | 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.024/50 Hz |
| Power dissipation in W | 120 W |
| Motor power range AC-3 | 2.2…3 kW at 200…240 V 3 phases |
| Switching frequency | 6…16 kHz adjustable | 12…16 kHz with derating factor |
| Nominal switching frequency | 12 kHz |
| Network frequency | 47.5…63 Hz |
| Net weight | 1.8 kg |
| Package 1 Weight | 1.756 kg |
| Package 2 Weight | 60.412 kg |
