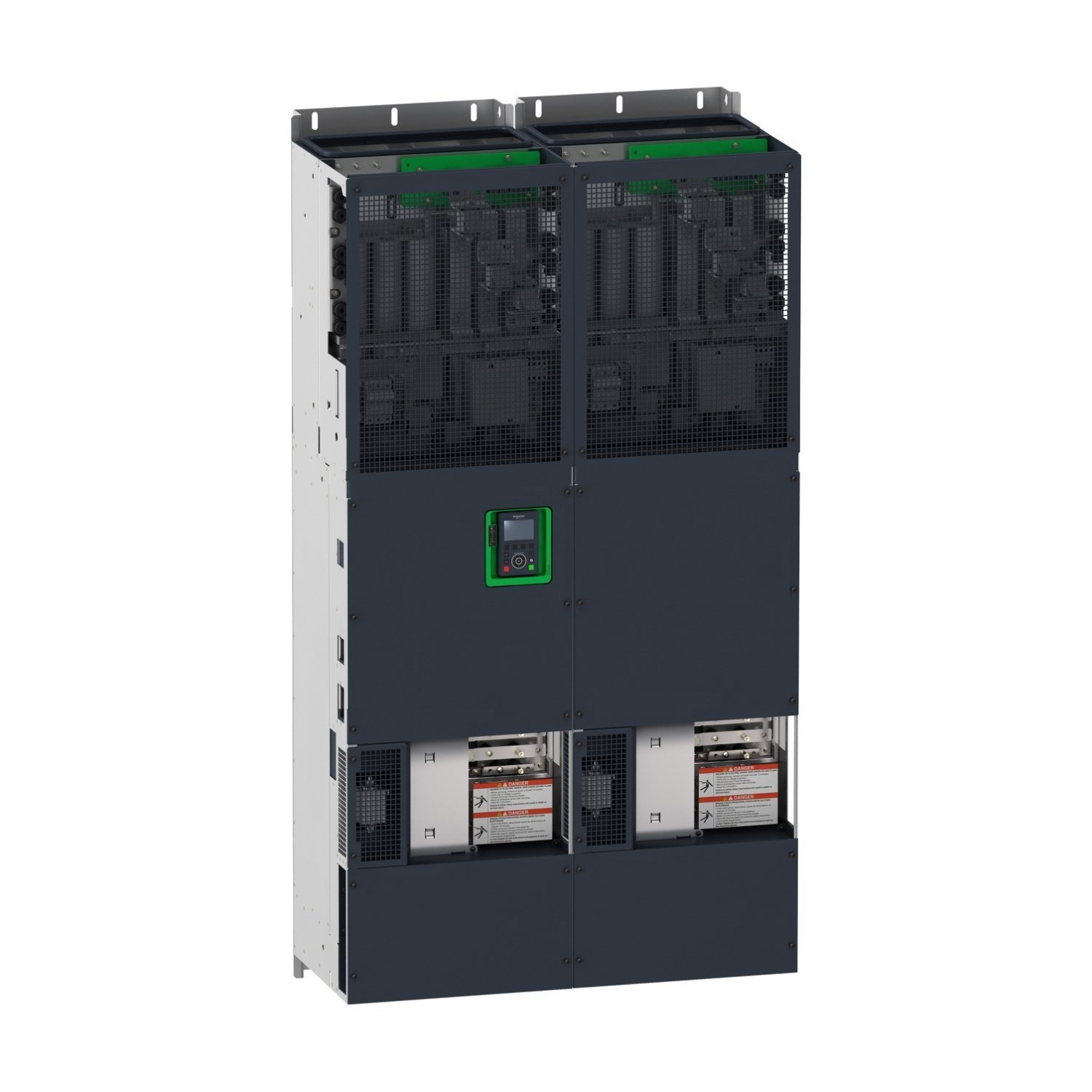

variable speed drive APM, ATV900, Low Harmonic/Regen drive, 440 V, 315 kW
Manufacturer: Schneider Electric
Part Number: ATV9B0C31R4
Key Specifications
| Range of product | Altivar Process ATV900 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz +/- 5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 440 V – 15…10 % |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Speed drive output frequency | 0.1…599 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz with derating factor | 2…8 kHz adjustable |
| Motor power kW | 315.0 kW at 440 V normal duty | 250.0 kW at 440 V heavy duty | 315.0 kW at 440 V normal duty regenerative mode | 250.0 kW at 440 V heavy duty regenerative mode |
| Line current | 446.0 A at 440 V (normal duty) | 354.0 A at 440 V (heavy duty) | 383.1 A at 440 V regenerative mode (normal duty) | 304.0 A at 440 V regenerative mode (heavy duty) |
| Apparent power | 340.0 kVA at 440 V normal duty | 270.0 kVA at 440 V heavy duty | 291.9 kVA at 440 V normal duty regenerative mode | 231.7 kVA at 440 V heavy duty regenerative mode |
| Continuous output current | 590.0 A at 2.5 kHz normal duty | 477.0 A at 2.5 kHz heavy duty | 590.0 A at 2.5 kHz normal duty regenerative mode | 477.0 A at 2.5 kHz heavy duty regenerative mode |
| Maximum transient current | 708.0 A during 60 s (normal duty) | 715.5 A during 60 s (heavy duty) | 708.0 A during 60 s regenerative mode (normal duty) | 715.5 A during 60 s regenerative mode (heavy duty) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
