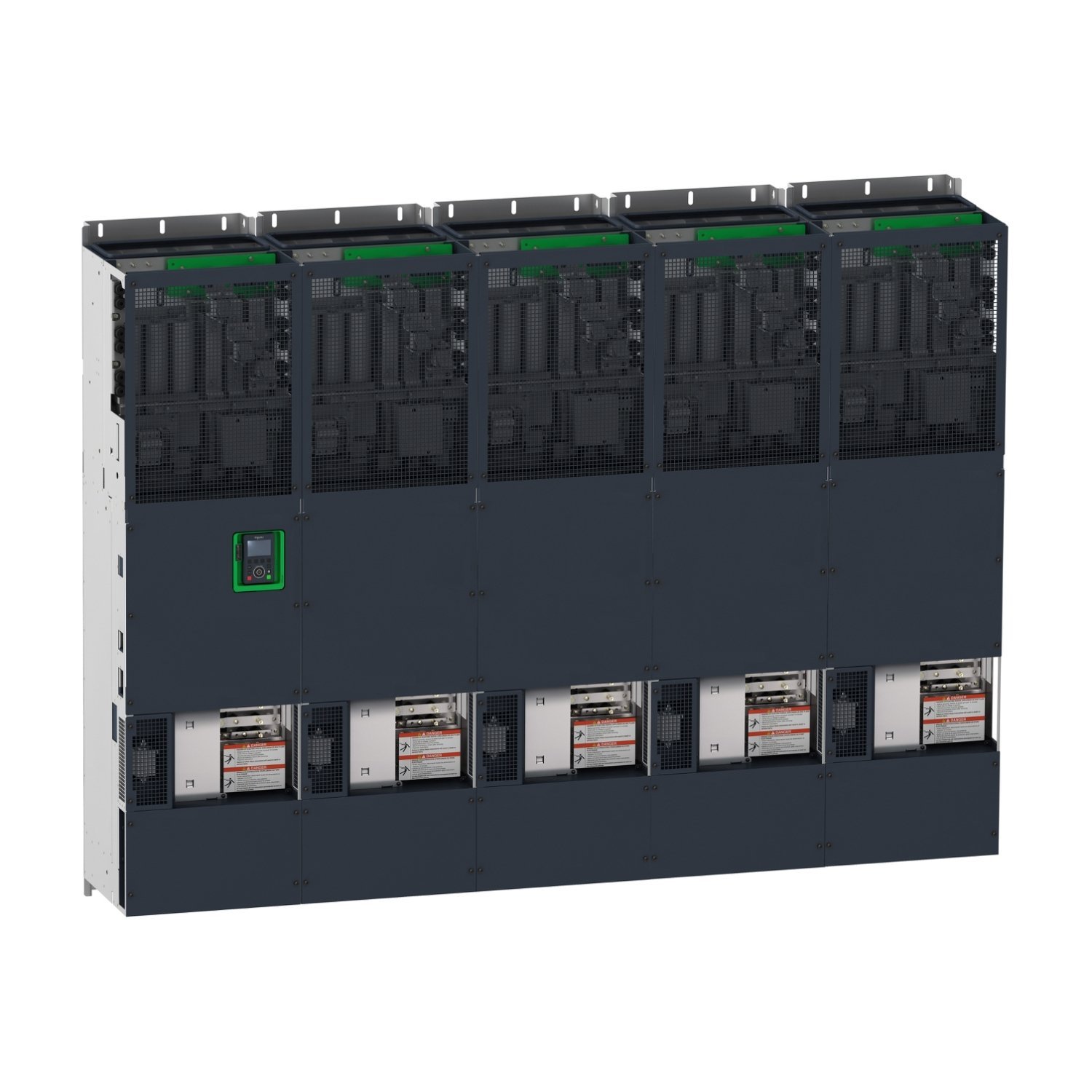

variable speed drive APM, ATV600, Low Harmonic drive, 400 V, 710 kW

Manufacturer: Schneider Electric

Part Number: ATV6B0C71R4

Range of product	Altivar Process ATV600
Mounting mode	Cabinet mount
IP degree of protection	IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 \| IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Network number of phases	3 phases
[Us] rated supply voltage	440 V – 15…10 %
Speed drive output frequency	0…500 Hz
Nominal switching frequency	2.5 kHz
Switching frequency	2.5…8 kHz with derating factor \| 2…8 kHz adjustable
Motor power kW	710.0 kW at 440 V normal duty \| 560.0 kW at 440 V heavy duty
Line current	995.0 A at 440 V (normal duty) \| 789.0 A at 440 V (heavy duty)
Apparent power	758 kVA at 440 V normal duty \| 601 kVA at 440 V heavy duty
Continuous output current	1260.0 A at 2.5 kHz normal duty \| 1020.0 A at 2.5 kHz heavy duty
Maximum transient current	1386 A during 60 s (normal duty) \| 1530 A during 60 s (heavy duty)
Permissible temporary current boost	1.1 x In during 60 s (normal duty) \| 1.5 x In during 60 s (heavy duty)
Output voltage	<= power supply voltage
Frequency resolution	Display unit: 0.1 Hz \| Analog input: 0.012/50 Hz
Power dissipation in W	Forced convection: 28350 W, switching frequency 2.5 kHz (normal duty) \| Forced convection: 22160 W, switching frequency 2.5 kHz (heavy duty)
