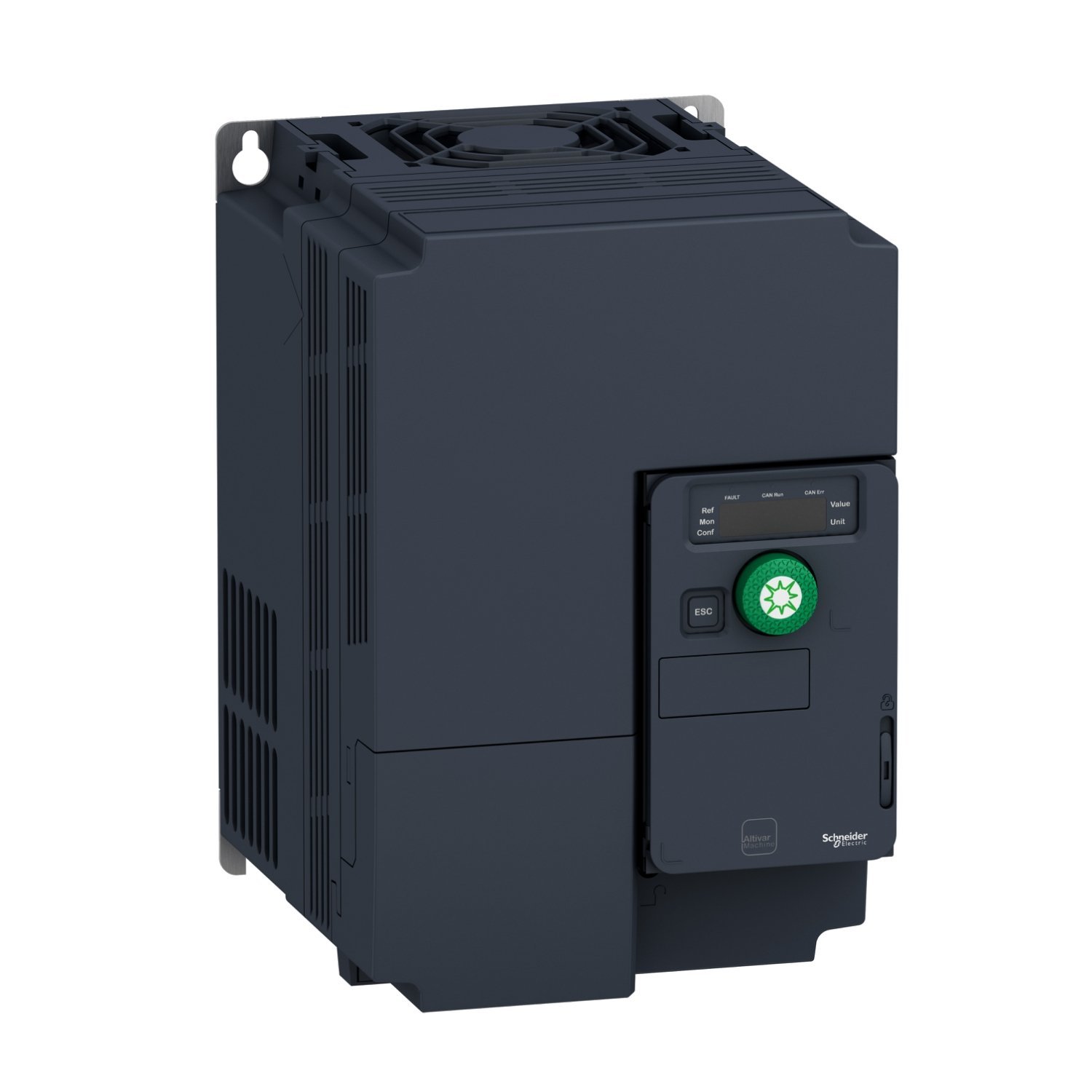

Variable speed drive, Altivar Solar, 7.5kW, 380 to 500V, 3 phases, compact
Manufacturer: Schneider Electric
Part Number: ATV320U75N4C412
Key Specifications
| Range of Product | Altivar Solar |
| Mounting Mode | Wall mount |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| nominal output current | 17.0 A |
| Motor power kW | 7.5 kW heavy duty |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC | Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC | Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 26.5 A 380 V heavy duty) | 18.7 A 500 V heavy duty) |
| Maximum Input Current per Phase | 26.5 A |
| Maximum output voltage | 500 V |
| Apparent power | 16.2 kVA 500 V heavy duty) |
| Maximum transient current | 25.5 A 60 s |
| Network Frequency | 50-60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 17.0 A |
| Power dissipation in W | Fan 229.0 W 380 V 4 kHz |
| Net Weight | 7.9 lb(US) (3.6 kg) |
| Power factor | 0.522 at 380 V |
| Overvoltage category | II |
| Package weight(Lbs) | 10.430 lb(US) (4.731 kg) |
