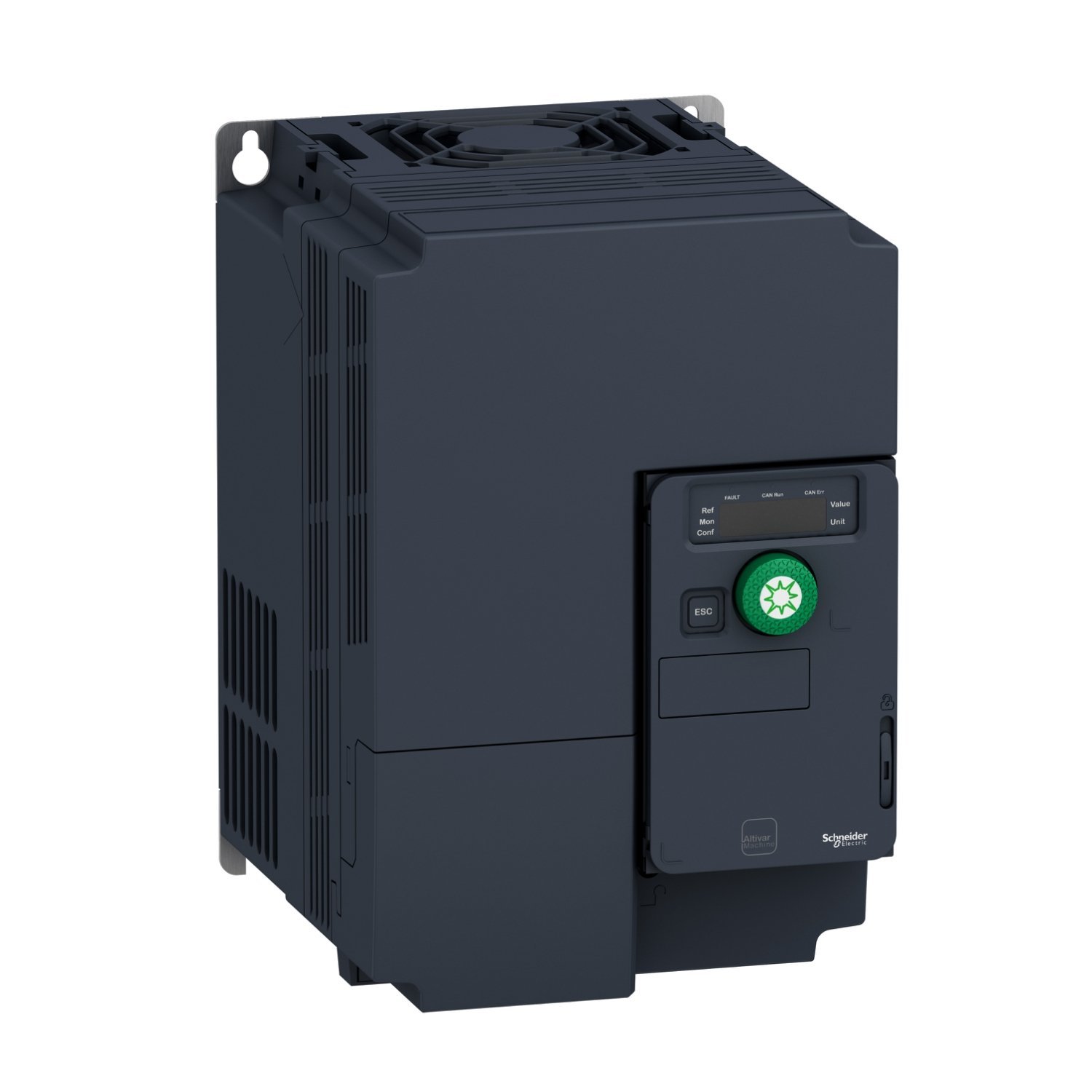

Variable speed drive, Altivar Solar, 5.5kW, 200 to 240V, 3 phases, compact
Manufacturer: Schneider Electric
Part Number: ATV320U55M3C412
Key Specifications
| Range of Product | Altivar Solar |
| Mounting Mode | Wall mount |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 27.5 A |
| Motor power kW | 5.5 kW heavy duty |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC | Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC | Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 35.4 A 200 V heavy duty) | 29.8 A 240 V heavy duty) |
| Maximum Input Current per Phase | 35.4 A |
| Maximum output voltage | 240 V |
| Apparent power | 12.4 kVA 240 V heavy duty) |
| Maximum transient current | 41.3 A 60 s |
| Network Frequency | 50-60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 27.5 A |
| Power dissipation in W | Fan 242.0 W 200 V 4 kHz |
| Net Weight | 7.7 lb(US) (3.5 kg) |
| Power factor | 0.552 at 230 V |
| Overvoltage category | II |
| Package weight(Lbs) | 9.226 lb(US) (4.185 kg) |
| Package 2 Weight | 120.92 lb(US) (54.85 kg) |
