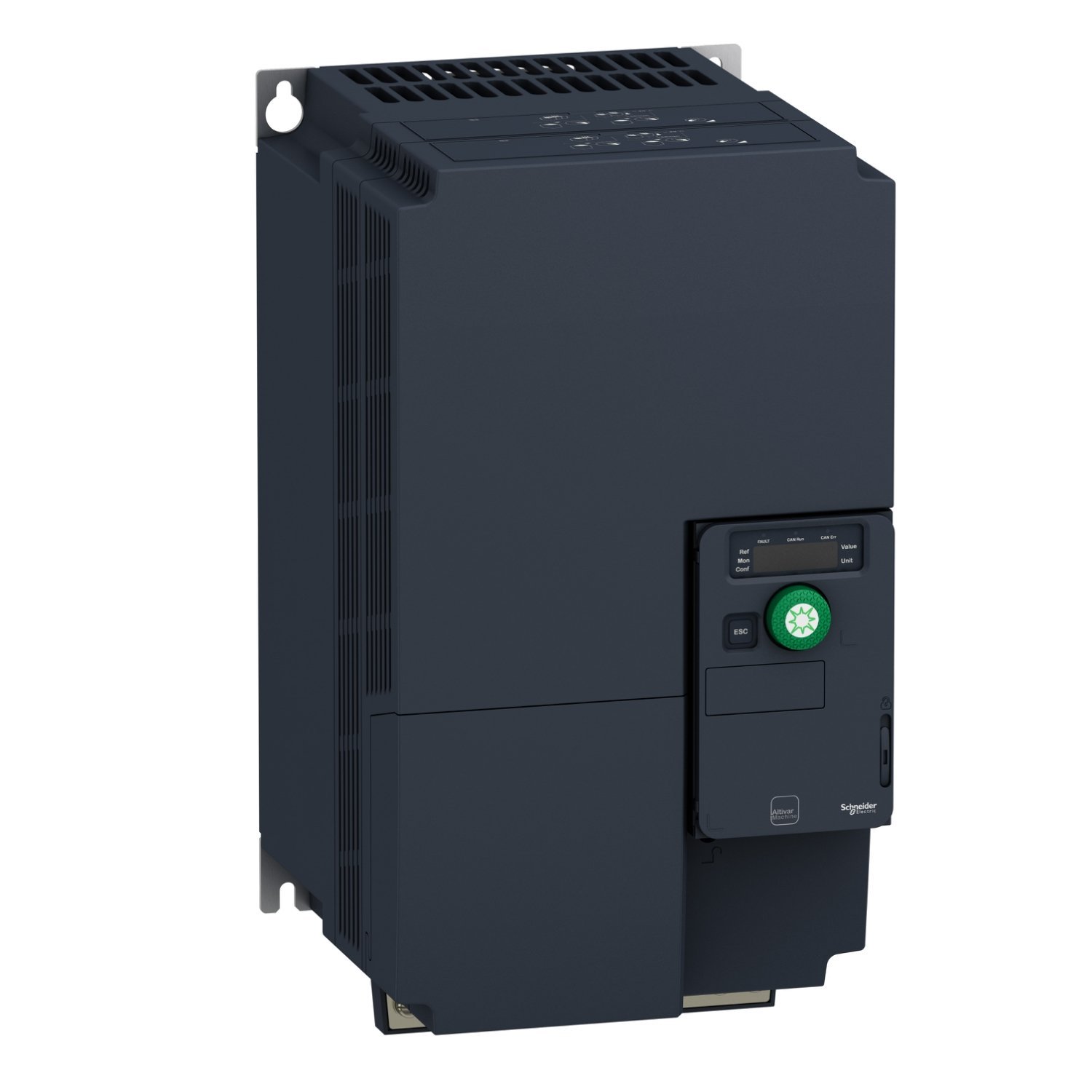

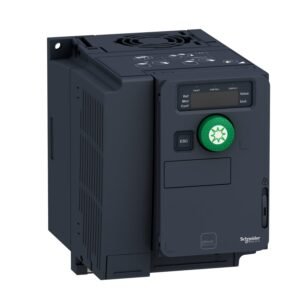

Variable speed drive, Altivar Solar, 11kW, 200 to 240V, 3 phases, compact
Manufacturer: Schneider Electric
Part Number: ATV320D11M3C412
Key Specifications
| Range of Product | Altivar Solar |
| Mounting Mode | Wall mount |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 54.0 A |
| Motor power kW | 11 kW heavy duty |
| IP degree of protection | IP20 |
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC | Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC | Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC | Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Maximum output frequency | 0.599 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 60.9 A 200 V heavy duty) | 51.4 A 240 V heavy duty) |
| Maximum Input Current per Phase | 60.9 A |
| Maximum output voltage | 240 V |
| Apparent power | 21.4 kVA 240 V heavy duty) |
| Maximum transient current | 81.0 A 60 s |
| Network Frequency | 50-60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Base load current at high overload | 1.5 A |
| Power dissipation in W | Fan 468.0 W 200 V 4 kHz |
| Net Weight | 15.0 lb(US) (6.8 kg) |
| Power factor | 0.604 at 230 V |
| Overvoltage category | II |
| Package weight(Lbs) | 17.388 lb(US) (7.887 kg) |
| Package 2 Weight | 132.987 lb(US) (60.322 kg) |
