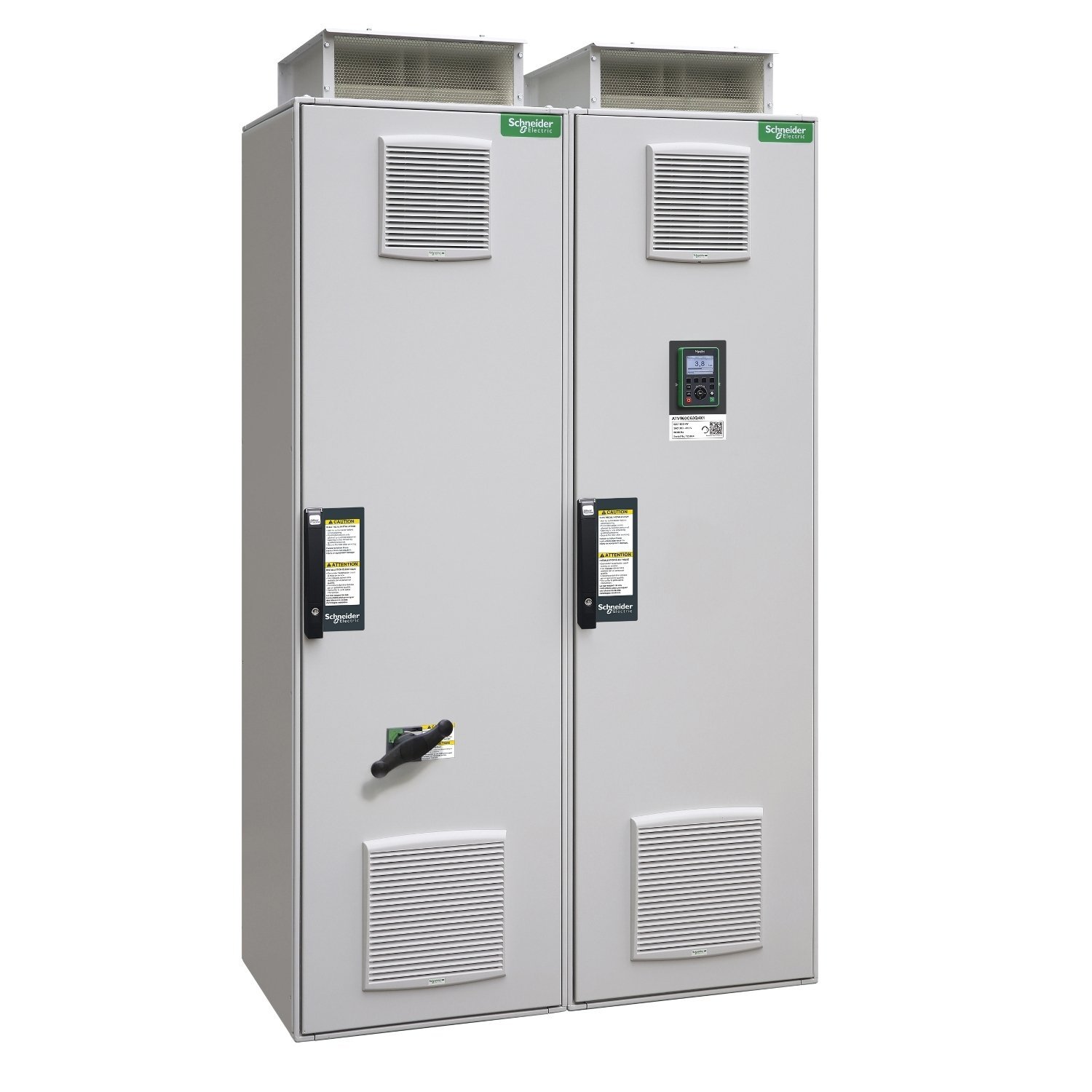

Variable speed drive, Altivar Process ATV900, ATV960 High Performance Drive System, 630/500kW, 400V, CE, IP23
Manufacturer: Schneider Electric
Part Number: ATV960C63Q4X1
EAN: 3606481276131
Key Specifications
| Range of product | Altivar Process ATV900 |
| Colour of enclosure | Light grey (RAL 7035) |
| IP degree of protection | IP23 conforming to IEC 61800-5-1 |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 380…415 V – 10…6 % |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Speed drive output frequency | 0.1…599 Hz |
| Continuous output current | 1140 A at 2.5 kHz for normal duty | 900 A at 2.5 kHz for heavy duty |
| Power dissipation in W | 16250 W, total (normal duty) | 12000 W, total (heavy duty) | 1800 W, control part (normal duty) | 1250 W, control part (heavy duty) |
| Motor power kW | 630 kW for normal duty | 500 kW for heavy duty |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 mA at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 mA at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 mA at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 mA at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 mA at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 mA at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 mA at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 mA at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Switching frequency | 2…8 kHz adjustable with derating factor |
| Nominal switching frequency | 2.5 kHz |
| Line current | 1058 A at 400 V (normal duty) | 849 A at 400 V (heavy duty) |
| Apparent power | 733 kVA at 400 V (normal duty) | 588 kVA at 400 V (heavy duty) |
| Maximum transient current | 1368 A during 60 s per 10 min (normal duty) | 1350 A during 60 s per 10 min (heavy duty) |
| Net weight | 850 kg |
| Overvoltage category | III |
| Package 1 Weight | 890 kg |
