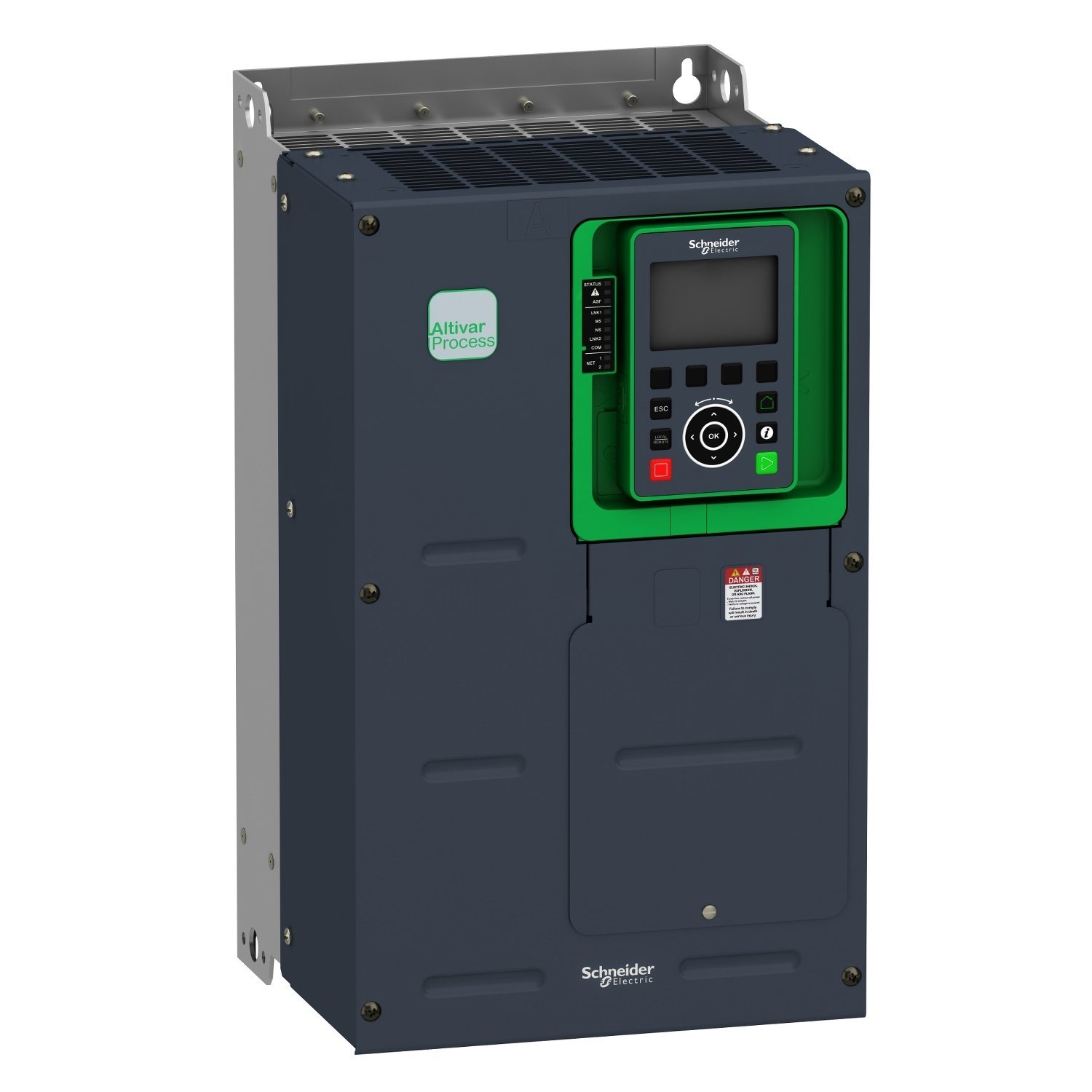

Variable speed drive, Altivar Process ATV900, ATV930, 15kW/20 hp, 500V/690 V, IP00
Manufacturer: Schneider Electric
Part Number: ATV930D15Y6
EAN: 3606481325303
Key Specifications
| Range of product | Altivar Process ATV900 |
| Network number of phases | 3 phases |
| Mounting mode | Wall mount |
| Continuous output current | 18 A at 4 kHz for normal duty | 13.5 A at 4 kHz for heavy duty |
| [Us] rated supply voltage | 500…690 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 18.0 A |
| Motor power kW | 11.0 kW for normal duty | 7.5 kW for heavy duty |
| IP degree of protection | IP21 |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum output frequency | 599 Hz |
| Switching frequency | 2…8 kHz adjustable | 4…8 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 18.4 A at 500 V (normal duty) | 13.6 A at 500 V (heavy duty) | 19.2 A at 690 V (normal duty) | 14.7 A at 690 V (heavy duty) |
| Maximum input current | 19.2 A |
| Maximum output voltage | 690.0 V |
| Apparent power | 22.9 kVA at 690 V (normal duty) | 17.6 kVA at 690 V (heavy duty) |
| Maximum transient current | 21.6 A during 60 s (normal duty) | 20.3 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 13.5 A |
| Base load current at low overload | 18.0 A |
| Power dissipation in W | Forced convection: 271 W at 500 V, switching frequency 4 kHz | Natural convection: 110 W at 500 V, switching frequency 4 kHz |
| Net weight | 22 kg |
| Overvoltage category | III |
| Package 1 Weight | 31.000 kg |
