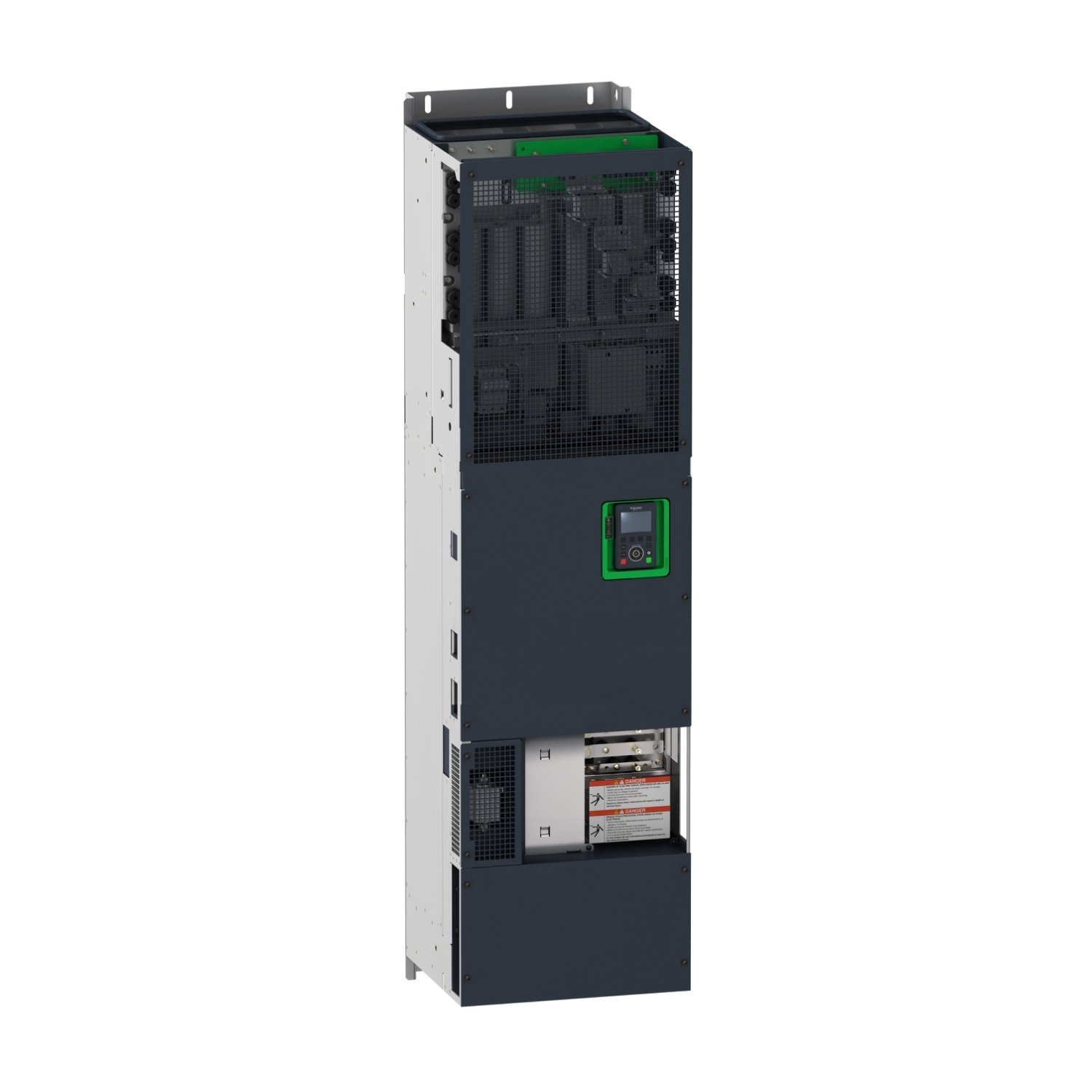

Variable speed drive, Altivar Process ATV900, APM, Low Harmonic/Regen 600 V, 150 hp
Manufacturer: Schneider Electric
Part Number: ATV9B0C13T6
Key Specifications
| Range of product | Altivar Process ATV900 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz +/- 5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 600 V – 10…15 % |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Speed drive output frequency | 0.1…599 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2…4.9 kHz adjustable with derating factor |
| Motor power hp | 150.0 hp at 600 V normal duty | 125.0 hp at 600 V heavy duty | 150.0 hp at 600 V normal duty regenerative mode | 125.0 hp at 600 V heavy duty regenerative mode |
| Line current | 121.0 A at 600 V (normal duty) | 102.0 A at 600 V (heavy duty) | 96.0 A at 600 V regenerative mode (normal duty) | 79.0 A at 600 V regenerative mode (heavy duty) |
| Apparent power | 126.0 kVA at 600 V normal duty | 106.0 kVA at 600 V heavy duty | 100.0 kVA at 600 V normal duty regenerative mode | 83.0 kVA at 600 V heavy duty regenerative mode |
| Continuous output current | 145.0 A at 2.5 kHz normal duty | 125.0 A at 2.5 kHz heavy duty | 145.0 A at 2.5 kHz normal duty regenerative mode | 125.0 A at 2.5 kHz heavy duty regenerative mode |
| Maximum transient current | 174.0 A during 60 s (normal duty) | 187.5 A during 60 s (heavy duty) | 174.0 A during 60 s regenerative mode (normal duty) | 187.5 A during 60 s regenerative mode (heavy duty) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
