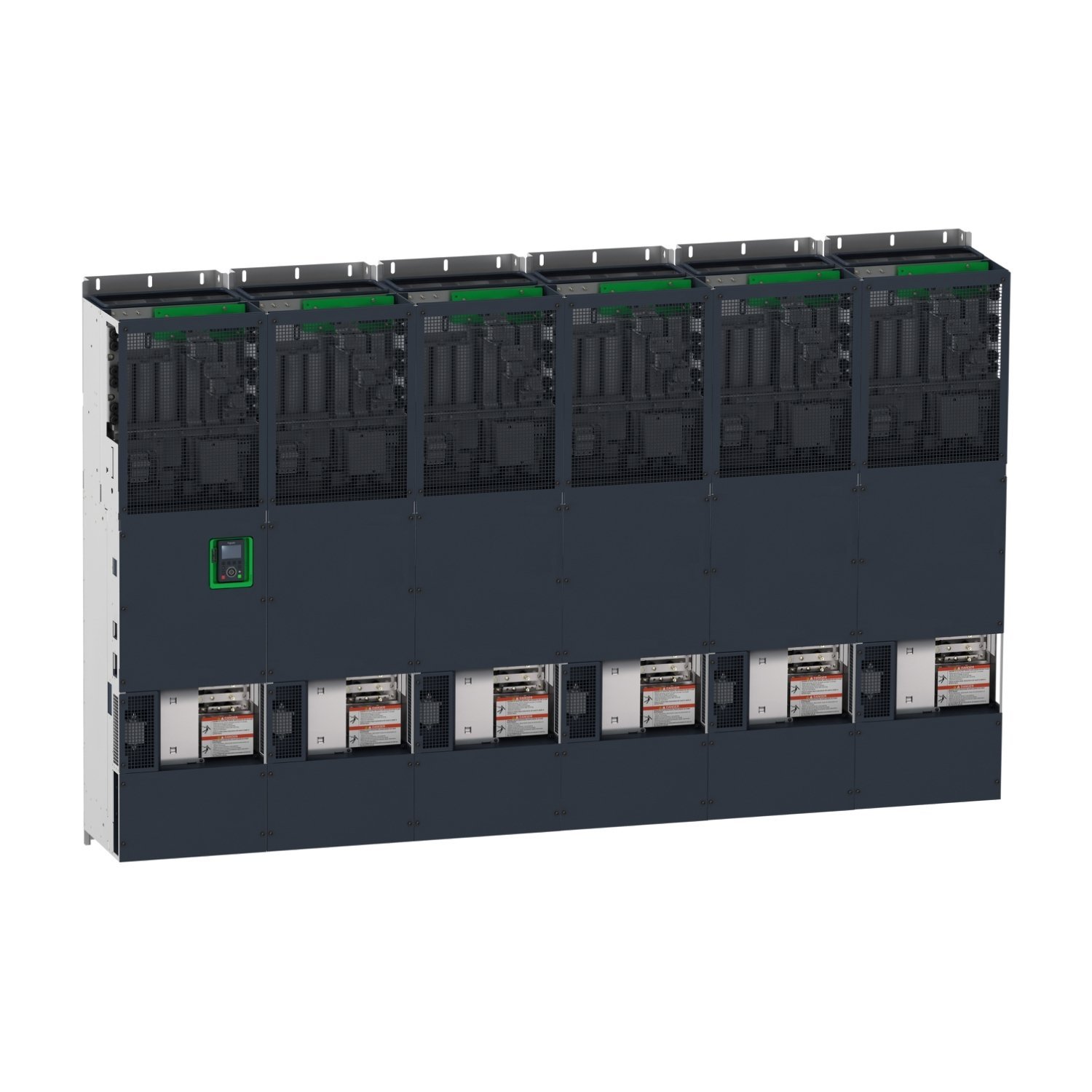

variable speed drive, Altivar Process ATV900, APM, Low Harmonic/Regen 400V, 1000kW
Manufacturer: Schneider Electric
Part Number: ATV9B0M10Q4
Key Specifications
| Range of product | Altivar Process ATV900 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz +/- 5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 400 V – 15…10 % |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Speed drive output frequency | 0.1…599 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5…8 kHz adjustable with derating factor | 2…8 kHz |
| Motor power kW | 1000.0 kW at 400 V normal duty | 800.0 kW at 400 V heavy duty | 1000.0 kW at 400 V normal duty regenerative mode | 800.0 kW at 400 V heavy duty regenerative mode |
| Line current | 1550.0 A at 400 V (normal duty) | 1240.0 A at 400 V (heavy duty) | 1344.0 A at 400 V regenerative mode (normal duty) | 1076.0 A at 400 V regenerative mode (heavy duty) |
| Apparent power | 1074.0 kVA at 400 V normal duty | 859.0 kVA at 400 V heavy duty | 931.0 kVA at 400 V normal duty regenerative mode | 745.0 kVA at 400 V heavy duty regenerative mode |
| Continuous output current | 1770.0 A at 2.5 kHz normal duty | 1420.0 A at 2.5 kHz heavy duty | 1770.0 A at 2.5 kHz normal duty regenerative mode | 1420.0 A at 2.5 kHz heavy duty regenerative mode |
| Maximum transient current | 2124.0 A during 60 s (normal duty) | 2130.0 A during 60 s (heavy duty) | 2124.0 A during 60 s regenerative mode (normal duty) | 2130.0 A during 60 s regenerative mode (heavy duty) |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC | Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC | Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| Power dissipation in W | Forced convection: 44.5 W (normal duty) | Forced convection: 34.4 W (heavy duty) |
