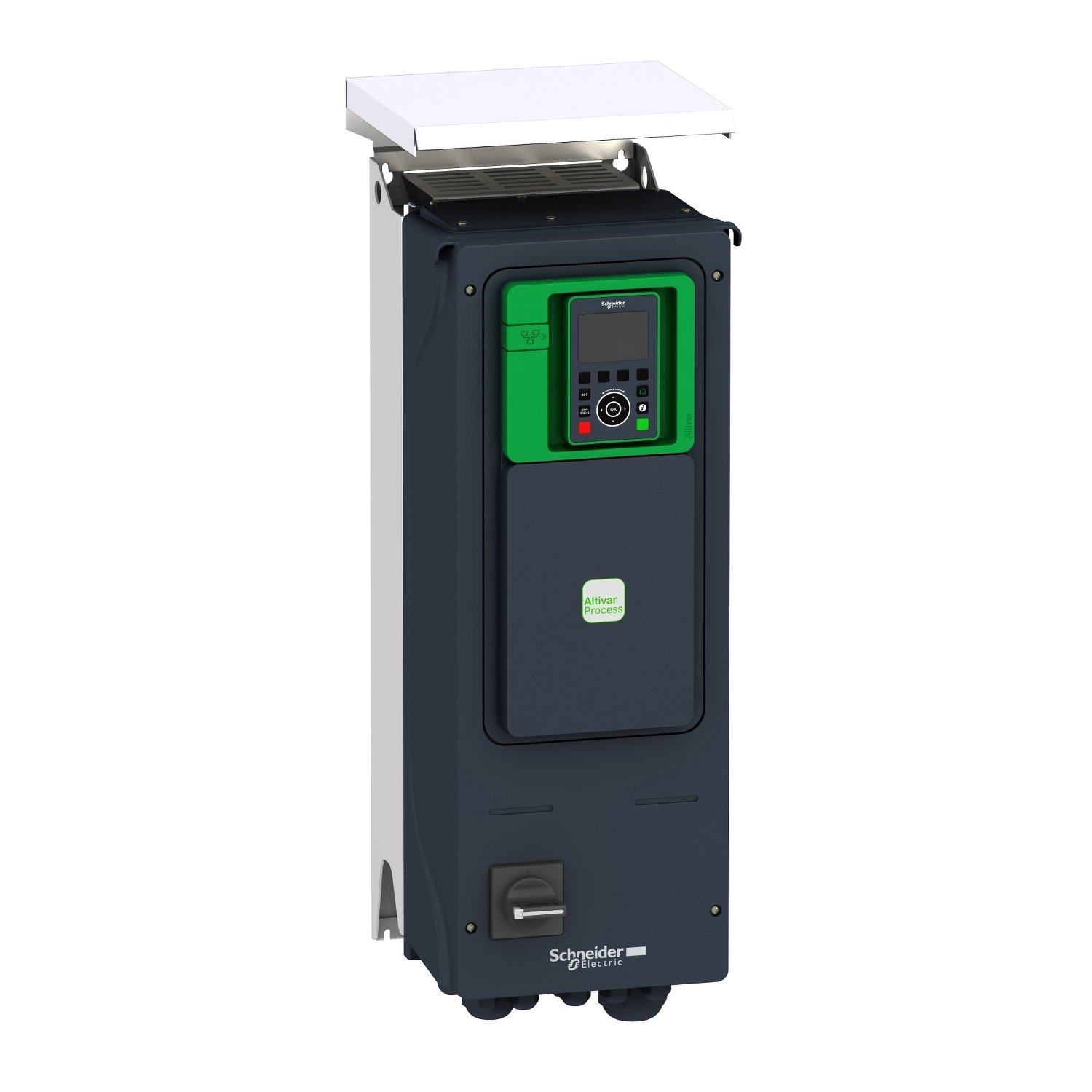

variable speed drive, Altivar Process ATV600, ATV650, 3kW, 400…480V, IP55
Manufacturer: Schneider Electric
Part Number: ATV650U30N4EU
EAN: 3606480906855
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Wall mount |
| [Us] rated supply voltage | 380…480 V |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 7.2 A |
| IP degree of protection | IP55 conforming to IEC 60529 | IP55 conforming to IEC 61800-5-1 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 2.2 kW (heavy duty) | 3 kW (normal duty) |
| Motor power hp | 3 hp normal duty | 3 hp heavy duty |
| Line current | 5.1 A at 480 V (normal duty) | 4.5 A at 380 V (heavy duty) | 4 A at 480 V (heavy duty) | 5.8 A at 380 V (normal duty) |
| Continuous output current | 5.6 A at 4 kHz for heavy duty | 7.2 A at 4 kHz for normal duty |
| Speed drive output frequency | 0.1…500 Hz |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.5 x In during 60 s (heavy duty) | 1.1 x In during 60 s (normal duty) |
| Frequency resolution | Analog input: 0.012/50 Hz | Display unit: 0.1 Hz |
| Enclosure mounting | Wall mounted |
| Maximum output frequency | 500 kHz |
| Switching frequency | 4…12 kHz with derating factor | 2…12 kHz adjustable |
| Nominal switching frequency | 4 kHz |
| Maximum input current | 5.8 A |
| Maximum output voltage | 480.0 V |
| Apparent power | 3.3 kVA at 480 V (heavy duty) | 4.2 kVA at 480 V (normal duty) |
| Maximum transient current | 7.9 A during 60 s (normal duty) | 8.4 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Base load current at high overload | 5.6 A |
| Base load current at low overload | 7.2 A |
| Net weight | 10.6 kg |
| Overvoltage category | III |
| Package 1 Weight | 21.0 kg |
