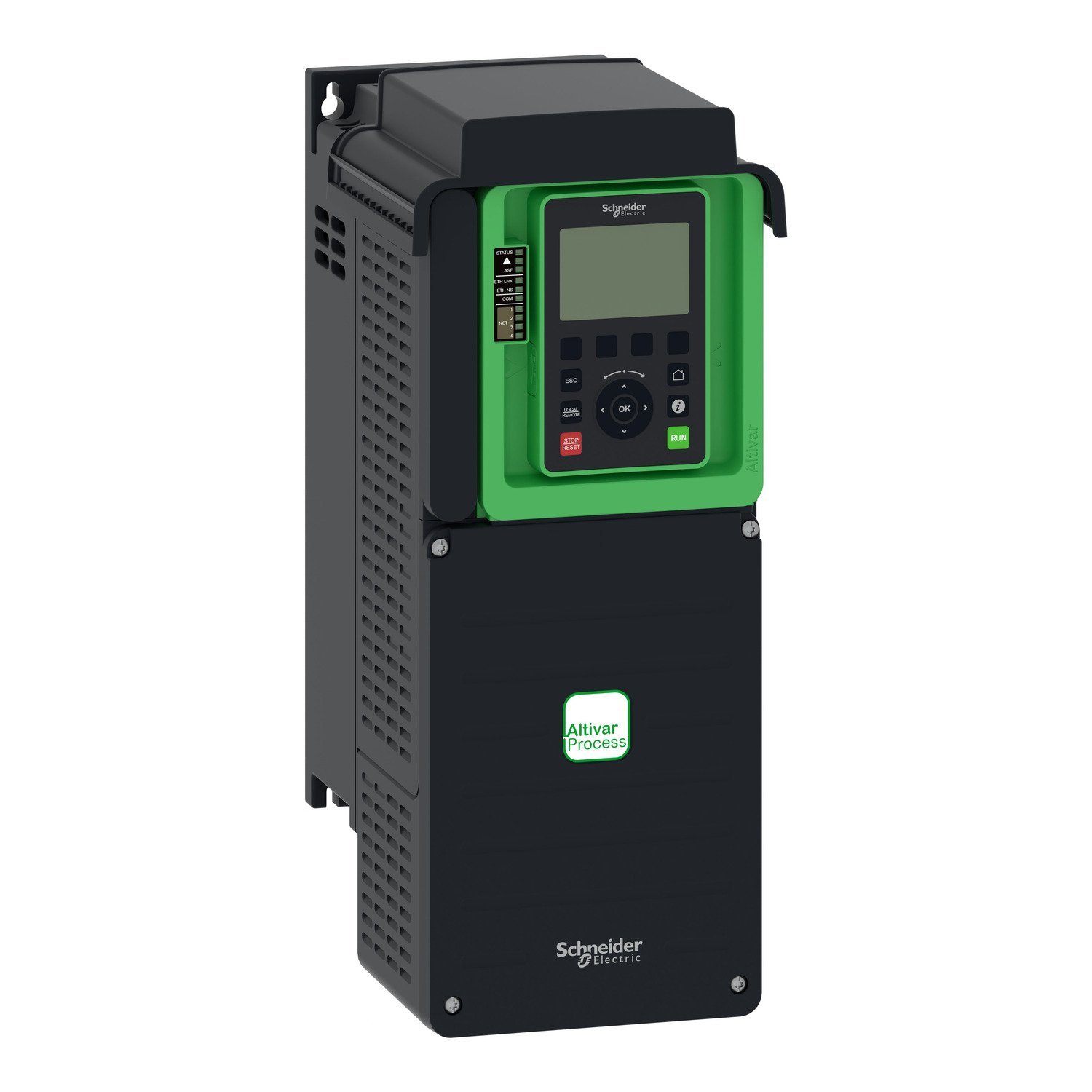

Variable Speed Drive, Altivar Process ATV600, ATV630, 5.5kW, 7.5hp, 200 to 240V, IP21, UL type 1 [TAA, BAA, BABA]

SKU: ATV630U55M3US Category: Altivar Process 630 Variable Frequency Drives VFD Tag: ATV630U55M3US|Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV600, ATV630, 5.5kW, 7.5hp, 200 to 240V, IP21, UL type 1 [TAA, BAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV630U55M3US

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Wall mount
[Us] rated supply voltage	200…240 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	25.4 A
IP degree of protection	IP21IEC 61800-5-1 \| IP21IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	5.5 kW normal duty) \| 4 kW heavy duty)
Maximum Horse Power Rating	7.5 hp normal duty \| 5 hp heavy duty
Line current	20.2 A 200 V normal duty) \| 17.1 A 240 V normal duty) \| 15.1 A 200 V heavy duty) \| 13 A 240 V heavy duty)
Continuous output current	25.4 A 4 kHz normal duty \| 18.7 A 4 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	4…6 kW 200…240 V 3 phase
Enclosure mounting	Wall mounted
Maximum output frequency	500 kHz
Switching frequency	2…12 kHz adjustable \| 4…12 kHz with derating factor
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	20.2 A
Maximum output voltage	240.0 V
Apparent power	7.1 kVA 240 V normal duty) \| 5.4 kVA 240 V heavy duty)
Maximum transient current	27.9 A 60 s normal duty) \| 28.1 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	18.7 A
Base load current at low overload	25.4 A
Power dissipation in W	Natural convection 47 W 200 V 4 kHz \| Forced convection 179 W 200 V 4 kHz
Net Weight	17.0 lb(US) (7.7 kg)
Overvoltage category	III
Package weight(Lbs)	22.181 lb(US) (10.061 kg)
