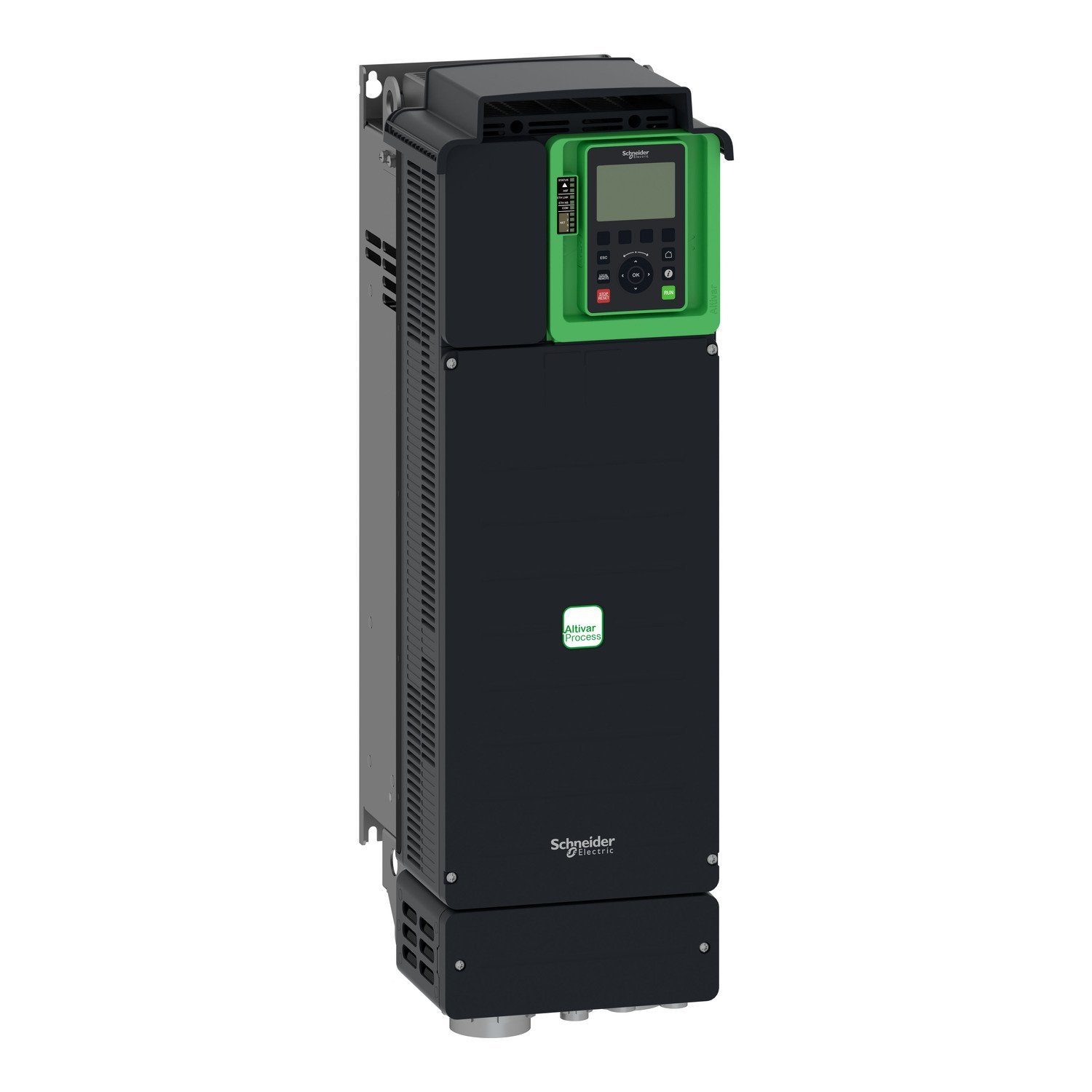

Variable Speed Drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 [TAA, BABA]

Get a Quote

Add to wishlist

SKU: ATV630D45N4US Category: Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV600, ATV630, 45kW, 60hp, 380 to 480V, IP21, UL type 1 [TAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV630D45N4US

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Wall mount
[Us] rated supply voltage	380…480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	88.0 A
IP degree of protection	IP21IEC 61800-5-1 \| IP21IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	45 kW normal duty) \| 37 kW heavy duty)
Maximum Horse Power Rating	60 hp normal duty \| 50 hp heavy duty
Line current	79.8 A 380 V normal duty) \| 69.1 A 480 V normal duty) \| 67.1 A 380 V heavy duty) \| 59 A 480 V heavy duty)
Continuous output current	88 A 4 kHz normal duty \| 74.5 A 4 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	30…50 kW 380…440 V 3 phase \| 30…50 kW 480…500 V 3 phase
Enclosure mounting	Wall mounted
Maximum output frequency	500 kHz
Switching frequency	2…12 kHz adjustable \| 4…12 kHz with derating factor
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	79.8 A
Maximum output voltage	480.0 V
Apparent power	57.4 kVA 480 V normal duty) \| 49.1 kVA 480 V heavy duty)
Maximum transient current	96.8 A 60 s normal duty) \| 111.8 A 60 s heavy duty)
Network Frequency	50-60 Hz
Base load current at high overload	74.5 A
Base load current at low overload	88.0 A
Power dissipation in W	Natural convection 121 W 380 V 4 kHz \| Forced convection 943 W 380 V 4 kHz
Net Weight	63.3 lb(US) (28.7 kg)
Overvoltage category	III
Package weight(Lbs)	72.8 lb(US) (33 kg)
