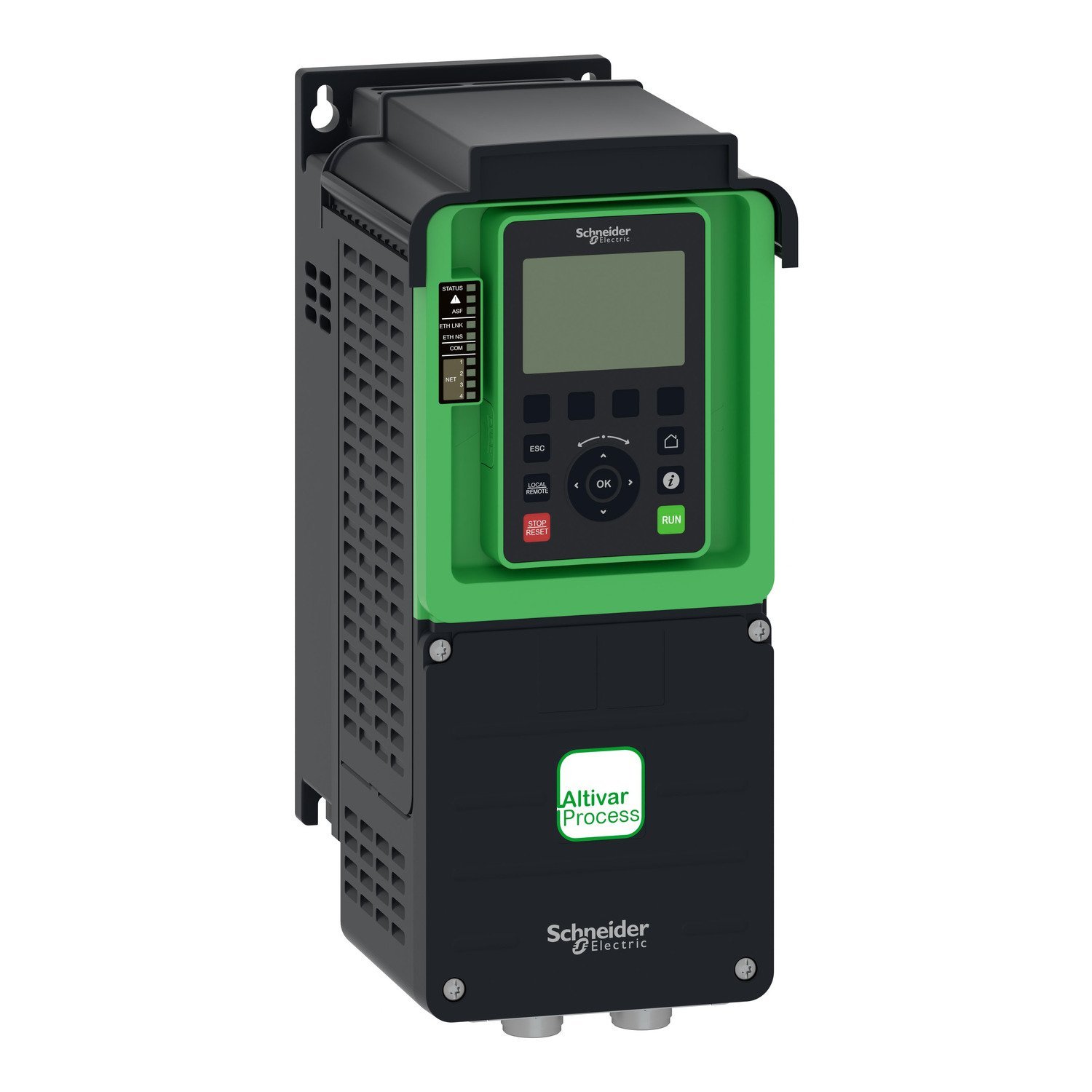

Variable Speed Drive, Altivar Process ATV600, ATV630, 3kW, 200 to 240V, IP21, UL type 1 [TAA, BAA, BABA]

SKU: ATV630U30M3US Category: Altivar Process 630 Variable Frequency Drives VFD Tag: ATV630U30M3US|Altivar Process 630 Variable Frequency Drives VFD Brand: Schneider Electric

Description

Variable Speed Drive, Altivar Process ATV600, ATV630, 3kW, 200 to 240V, IP21, UL type 1 [TAA, BAA, BABA]

Manufacturer: Schneider Electric

Part Number: ATV630U30M3US

Key Specifications

Range of Product	Altivar Process ATV600
Mounting Mode	Wall mount
[Us] rated supply voltage	200…240 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	13.7 A
IP degree of protection	IP21IEC 61800-5-1 \| IP21IEC 60529
Supply frequency	50…60 Hz – 5…5 %
Motor power kW	3 kW normal duty) \| 2.2 kW heavy duty)
Maximum Horse Power Rating	3 hp heavy duty \| 4 hp normal duty
Line current	11.5 A 200 V normal duty) \| 9.9 A 240 V normal duty) \| 8.7 A 200 V heavy duty) \| 7.6 A 240 V heavy duty)
Continuous output current	13.7 A 4 kHz normal duty \| 11.2 A 4 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC \| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC \| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty) \| 1.5 x In 60 s heavy duty)
Frequency resolution	Display unit 0.1 Hz \| Analog input 0.012/50 Hz
Power range	2.2…3 kW 200…240 V 3 phase
Enclosure mounting	Wall mounted
Maximum output frequency	500 kHz
Switching frequency	2…12 kHz adjustable \| 4…12 kHz with derating factor
Nominal switching frequency	4 kHz
Maximum Input Current per Phase	11.5 A
Maximum output voltage	240.0 V
Apparent power	4.1 kVA 240 V normal duty) \| 3.2 kVA 240 V heavy duty)
Maximum transient current	16.8 A 60 s heavy duty) \| 15.1 A 60 s normal duty)
Network Frequency	50-60 Hz
Base load current at high overload	11.2 A
Base load current at low overload	13.7 A
Power dissipation in W	Natural convection 34 W 200 V 4 kHz \| Forced convection 104 W 200 V 4 kHz
Net Weight	9.9 lb(US) (4.5 kg)
Overvoltage category	III
Package weight(Lbs)	13.329 lb(US) (6.046 kg)
