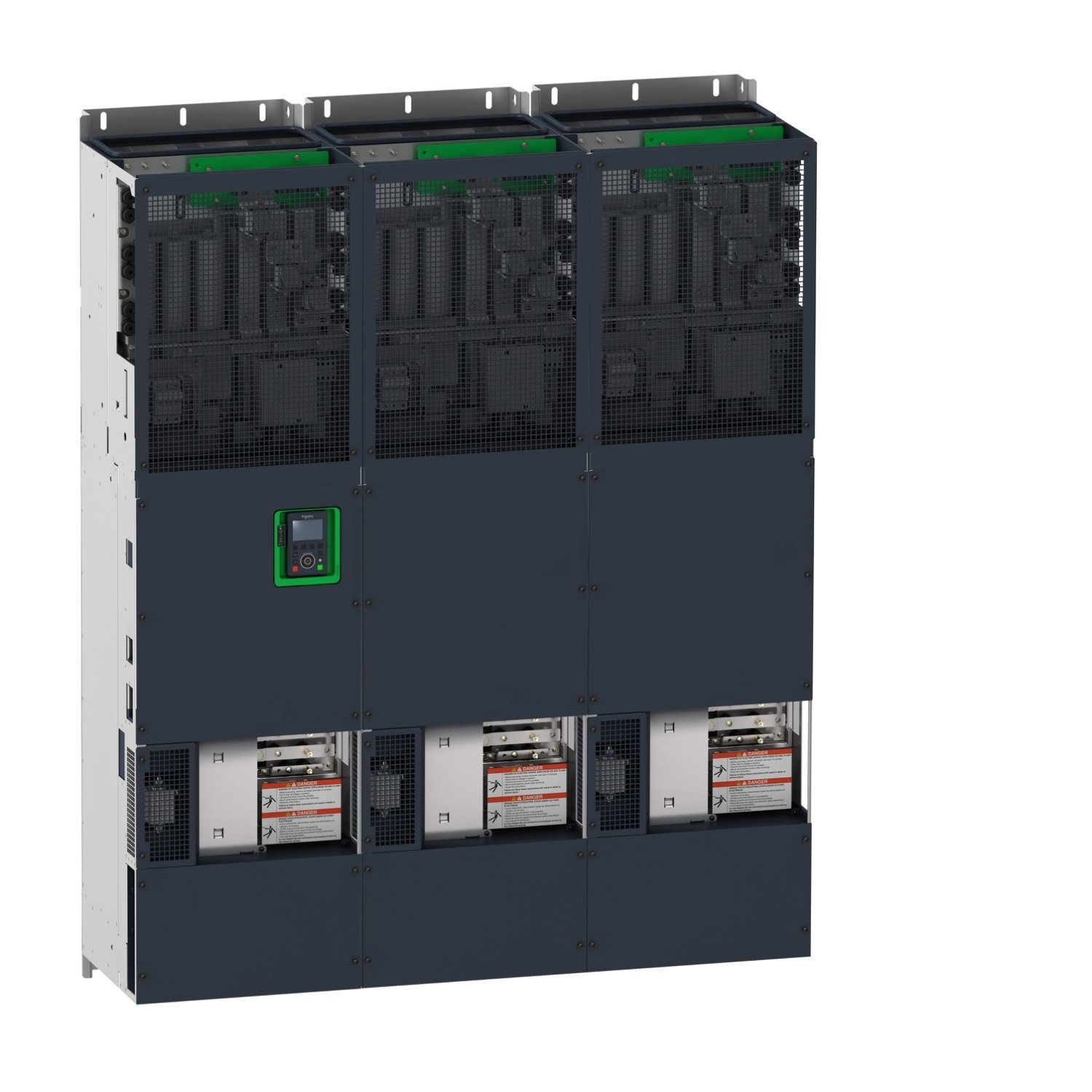

Variable speed drive, Altivar Process ATV600, APM, Low Harmonic 690 V, 500 kW
Manufacturer: Schneider Electric
Part Number: ATV6B0C50Q6
Key Specifications
| Range of product | Altivar Process ATV600 |
| Mounting mode | Cabinet mount |
| IP degree of protection | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 61800-5-1 | IP00 (for IP21 or IP54 cabinet integration) conforming to IEC 60529 |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 690 V – 10…10 % |
| Speed drive output frequency | 0…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2…4.9 kHz adjustable with derating factor |
| Motor power kW | 500.0 kW at 690 V normal duty | 400.0 kW at 690 V heavy duty |
| Line current | 453.0 A at 690 V (normal duty) | 362.0 A at 690 V (heavy duty) |
| Apparent power | 541 kVA at 690 V normal duty | 433 kVA at 690 V heavy duty |
| Continuous output current | 520.0 A at 2.5 kHz normal duty | 425.0 A at 2.5 kHz heavy duty |
| Maximum transient current | 572 A during 60 s (normal duty) | 637.5 A during 60 s (heavy duty) |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) | 1.5 x In during 60 s (heavy duty) |
| Output voltage | <= power supply voltage |
| Frequency resolution | Display unit: 0.1 Hz | Analog input: 0.012/50 Hz |
| Power dissipation in W | Forced convection: 18600 W, switching frequency 2.5 kHz (normal duty) | Forced convection: 14910 W, switching frequency 2.5 kHz (heavy duty) |
