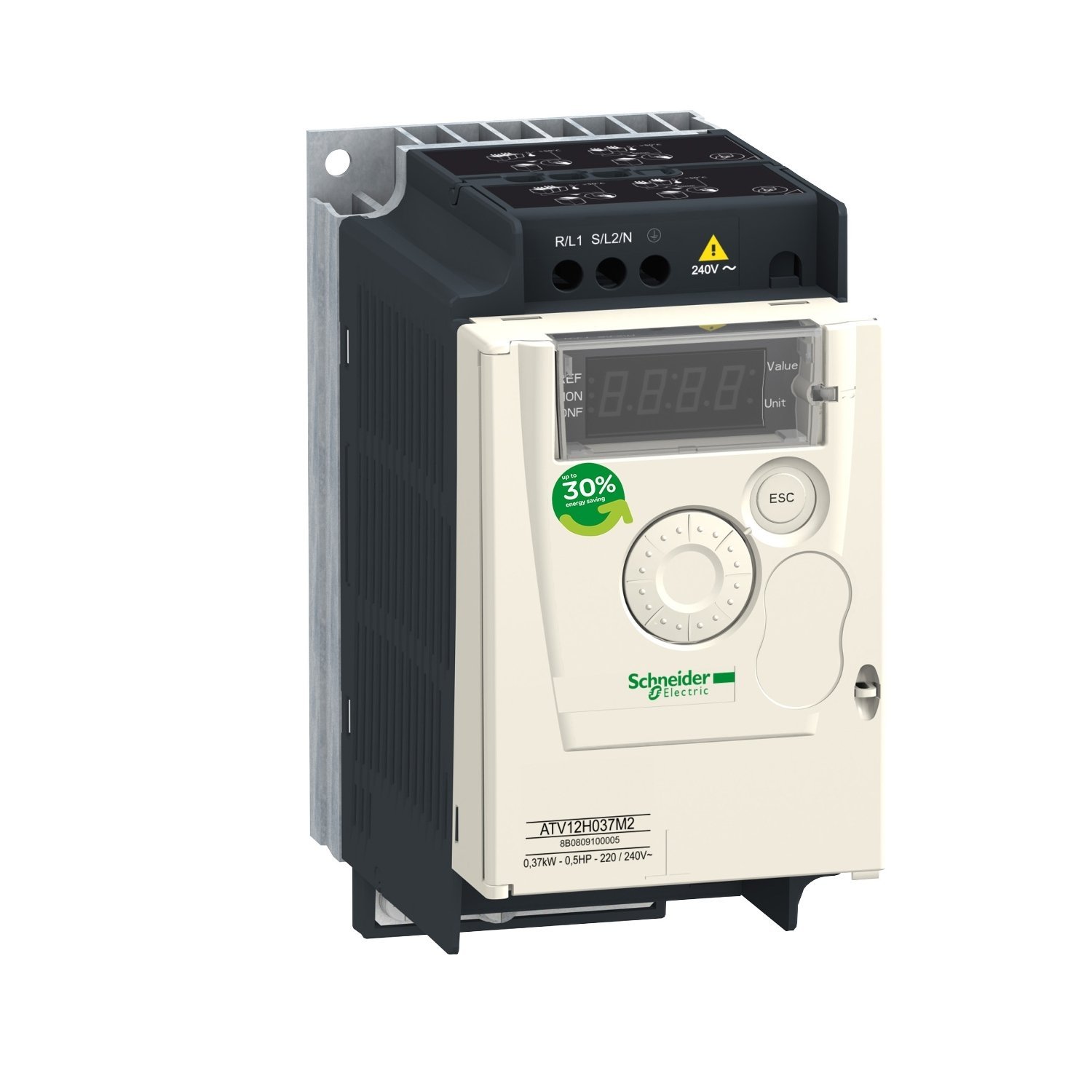

variable speed drive, Altivar 12, 0.37kW, 0.55hp, 200 to 240V, 1 phase, without heat sink
Manufacturer: Schneider Electric
Part Number: ATV12H037M2X
Key Specifications
| Range of product | Altivar 12 |
| Mounting mode | Cabinet mount |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 2.4 A |
| Motor power kW | 0.37 kW |
| Motor power hp | 0.55 hp |
| IP degree of protection | IP20 |
| Continuous output current | 2.4 A at 4 kHz |
| Speed drive output frequency | 0.5…400 Hz |
| Frequency resolution | Analog input: converter A/D, 10 bits | Display unit: 0.1 Hz |
| Maximum output frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable | 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 5.9 A at 100 V (heavy duty) | 4.9 A at 120 V (heavy duty) |
| Maximum input current | 4.9 A |
| Maximum output voltage | 240 V |
| Apparent power | at 240 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Net weight | 0.7 kg |
| Overvoltage category | Class III |
| Package 1 Weight | 1.100 kg |
| Package 2 Weight | 58.000 kg |
