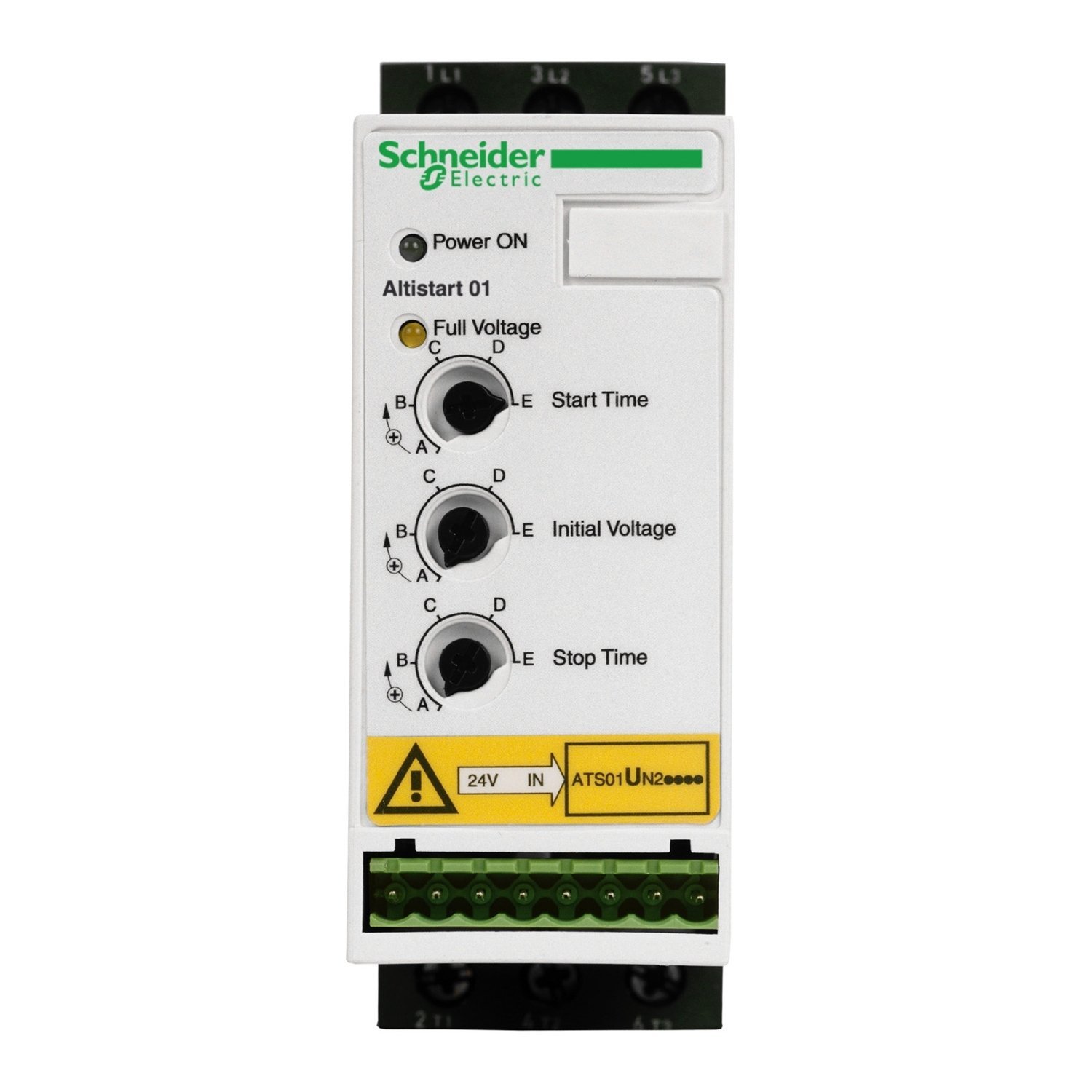

soft starter for asynchronous motor – ATSU01 – 12 A – 200..480V – 2.2..5.5 KW
Manufacturer: Schneider Electric
Part Number: ATSU01N212LT
EAN: 3389110667103
Key Specifications
| Range of product | Altistart U01 and TeSys U |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 200…480 V – 10…10 % |
| Motor power kW | 2.2 kW, 3 phases at 230 V | 5.5 kW, 3 phases at 400 V | 3 kW, 3 phases at 230 V |
| Motor power hp | 3 hp, 3 phases at 230 V | 7.5 hp, 3 phases at 460 V |
| Current consumption | 65 mA |
| Power dissipation in W | 1.5 W at full load and at end of starting | 121.5 W in transient state |
| Supply voltage limits | 180…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network frequency | 47.5…63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | 24 V DC +/- 10 % |
| Discrete input voltage | 24…40 V |
| Discrete output current | 2 A DC-13 | 3 A AC-15 |
| Discrete output voltage | 24 V (voltage limits: 6…30 V) open collector logic |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Maximum switching current | Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load | Relay outputs: 2 A at 250 V AC AC-15 cos phi = 0.5 and L/R = 20 ms inductive load |
| Maximum switching voltage | 440 V relay outputs |
| Net weight | 0.34 kg |
| Power range | 2.2…3 kW at 200…240 V 3 phases | 4…6 kW at 380…440 V 3 phases |
| IP degree of protection | IP20 |
| Package 1 Weight | 453.0 g |
| Package 2 Weight | 6.889 kg |
