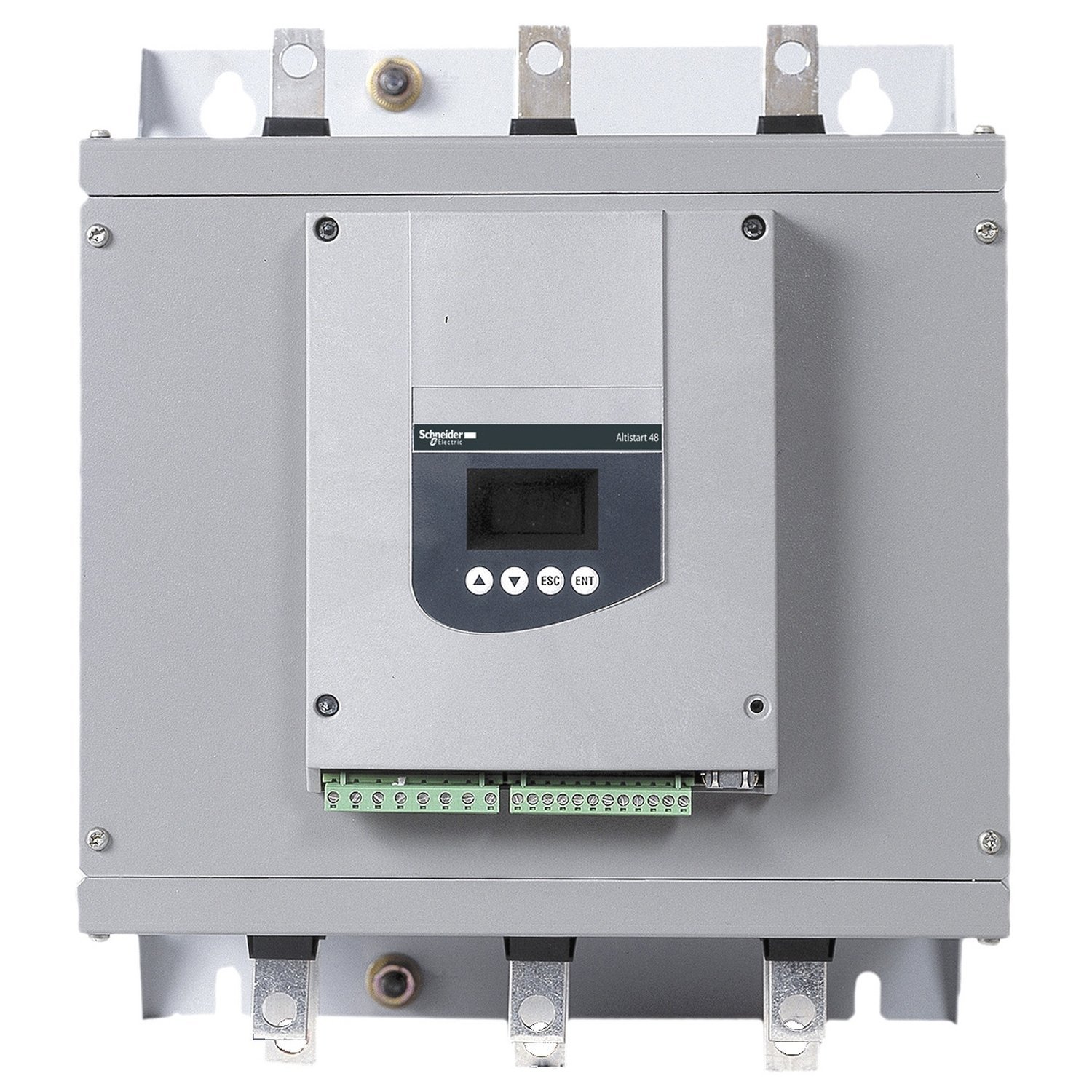

soft starter for asynchronous motor, Altistart 48, 302A, 208 to 690V, 75 to 315kW
Manufacturer: Schneider Electric
Part Number: ATS48C32YS316
Key Specifications
| Range of Product | Altistart 48 |
| Ue power supply voltage | 208…690 V – 15…10 % |
| power supply frequency | 50…60 Hz – 5…5 % |
| Motor power kW | 132 kW 400 V for severe applications | 132 kW 440 V for severe applications | 160 kW 400 V for standard applications | 160 kW 440 V for standard applications | 160 kW 500 V for severe applications | 160 kW 525 V for severe applications | 220 kW 500 V for standard applications | 220 kW 525 V for standard applications | 220 kW 660 V for severe applications | 250 kW 660 V for standard applications | 250 kW 690 V for severe applications | 315 kW 690 V for standard applications | 75 kW 230 V for severe applications | 90 kW 230 V for standard applications |
| Maximum Horse Power Rating | 100 hp 208 V for standard applications | 100 hp 230 V for severe applications | 125 hp 230 V for standard applications | 200 hp 460 V for severe applications | 250 hp 460 V for standard applications | 250 hp 575 V for severe applications | 300 hp 575 V for standard applications | 75 hp 208 V for severe applications |
| Minimum switching current | 10 mA 6 V DC relay outputs |
| Net Weight | 40.1 lb(US) (18.2 kg) |
| Package weight(Lbs) | 49.12 lb(US) (22.28 kg) |
