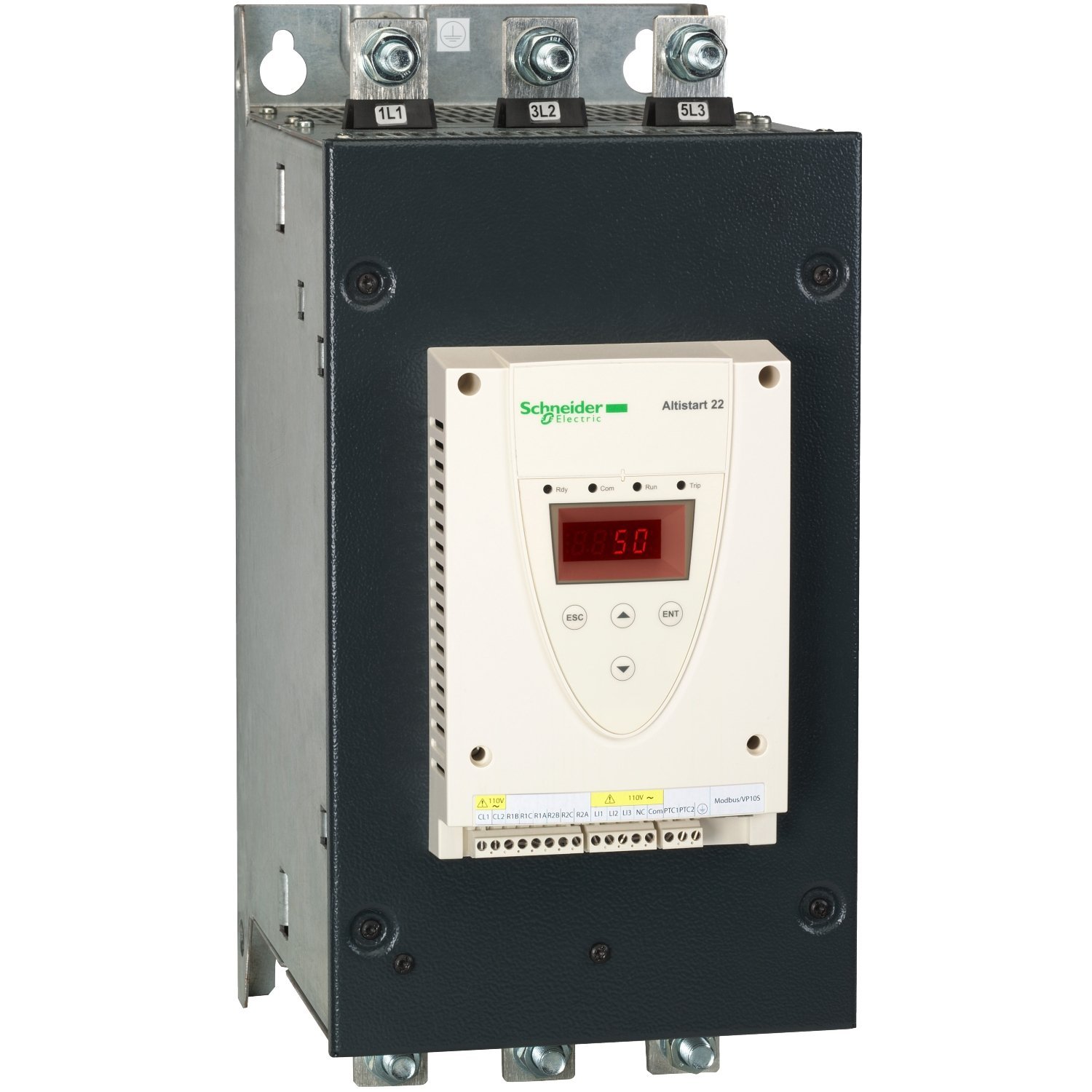

soft starter-ATS22-control 220V-power 230V(90kW)/400…440V(160kW)
Manufacturer: Schneider Electric
Part Number: ATS22C32Q
EAN: 3606480211270
Key Specifications
| Range of product | Altistart 22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 230…440 V – 15…10 % |
| Motor power kW | 160 kW 400 V | 160 kW 440 V | 90 kW 230 V |
| Factory setting current | 285 A |
| Power dissipation in W | 150 W for standard applications |
| IP degree of protection | IP00 |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50…60 Hz – 10…10 % |
| Network frequency | 45…66 Hz |
| [Uc] control circuit voltage | 230 V – 15…10 % 50/60 Hz |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs | 5 A 30 V DC resistive 1 relay outputs | 2 A 250 V AC inductive 0.4 20 ms relay outputs | 2 A 30 V DC inductive 7 ms relay outputs |
| Discrete input voltage | 24 V <= 30 V |
| Output current | 0.4…1 Icl adjustable |
| Net weight | 33 kg |
| Motor power range AC-3 | 55…100 kW at 200…240 V 3 phases | 110…220 kW at 380…440 V 3 phases |
| Package 1 Weight | 24.5 kg |
