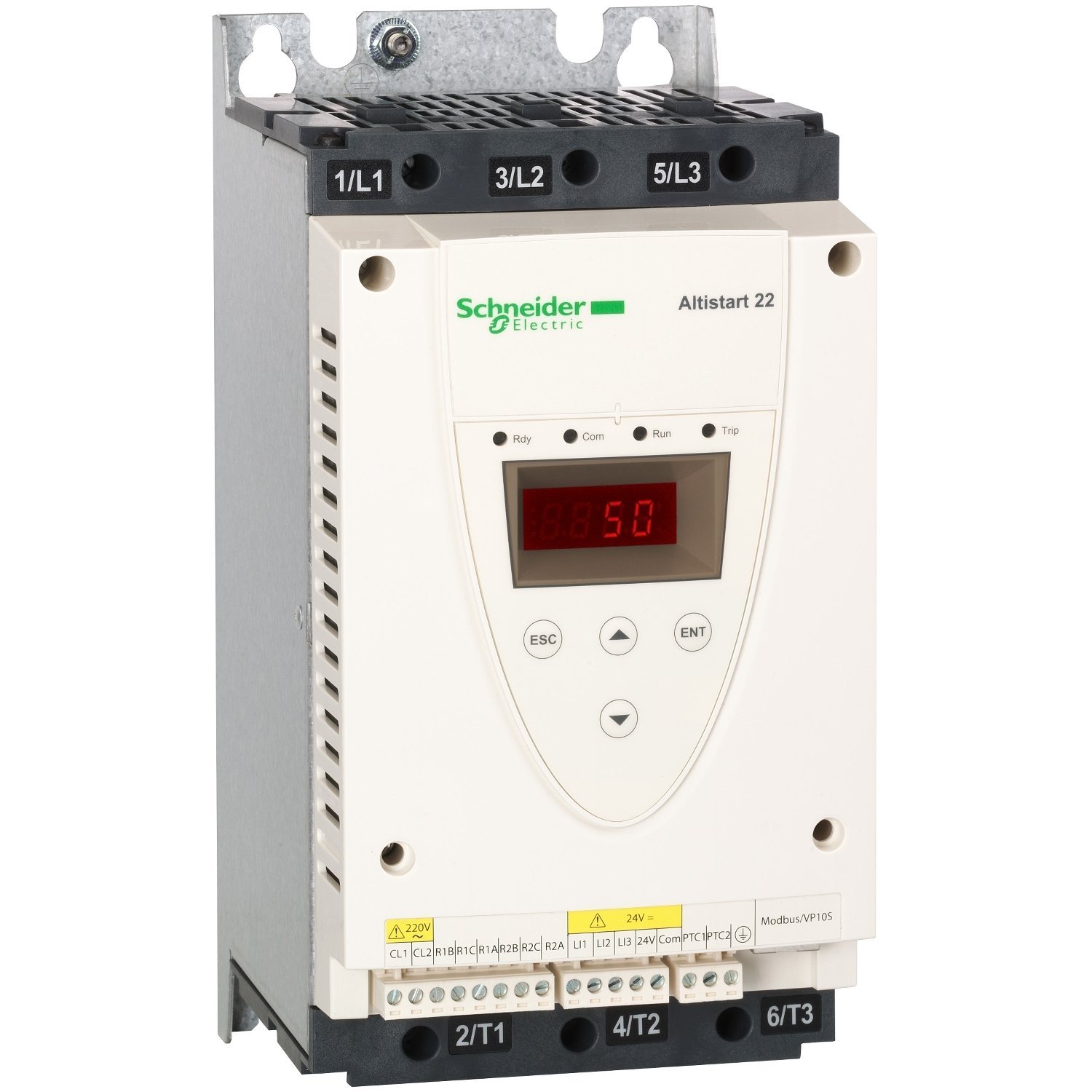

soft starter-ATS22-control 110V-power 230V(15hp)/460V(30hp)/575V(40hp)
Manufacturer: Schneider Electric
Part Number: ATS22D47S6U
EAN: 3606480167393
Key Specifications
| Range of product | Altistart 22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 208…600 V – 15…10 % |
| Motor power hp | 15 hp 230 V | 30 hp 460 V | 40 hp 575 V |
| Factory setting current | 40 A |
| Power dissipation in W | 48 W for standard applications |
| IP degree of protection | IP20 |
| Supply voltage limits | 177…660 V |
| Supply frequency | 50…60 Hz – 10…10 % |
| Network frequency | 45…66 Hz |
| [Uc] control circuit voltage | 110 V – 15…10 % 50/60 Hz |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs | 5 A 30 V DC resistive 1 relay outputs | 2 A 250 V AC inductive 0.4 20 ms relay outputs | 2 A 30 V DC inductive 7 ms relay outputs |
| Discrete input voltage | 110 V <= 121 V |
| Output current | 0.4…1 Icl adjustable |
| Net weight | 7 kg |
| Package 1 Weight | 5.706 kg |
| Package 2 Weight | 70.06 kg |
