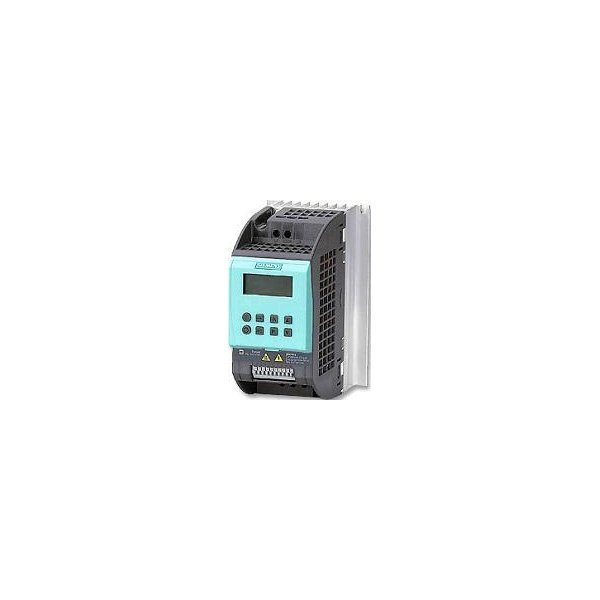

SINAMICS G110 is a frequency inverter with basic functions for a variety of industrial variable-speed drive applications. The particularly compact SINAMICS G110 inverter operates with voltage frequency control on single-phase supplies. It is the ideal low-cost frequency inverter solution for the lower power range of the SINAMICS family. It is especially suited for use with pumps and fans, or as a drive in various industrial sectors, such as the food, textile and packaging industries. as well as for conveyor systems, factory gate and garage door drives, and as a universal drive for moving billboards and fitness equipment.
- Optimum adaptation of production rates due to stepless speed control
- Energy saving for pumps and fans in the partial-load range
- Reduced system load, as a result of low starting currents, unlike with fixed-speed drives
- Improved quality, as inverters balance out severe impacts and peak loads
- Compliance with EMC legislation due to integrated/optional RFI suppression filters
- Simple cable connection, screwless control terminals
- Compact devices in three frame sizes
- LED for status information
- Variant with flat heat sink – ideal for narrow installation conditions
- Rugged EMC design
- Clearly arranged power terminals as with contactors
- Easy to integrate into automation systems with SIMATIC S7-200
Specifications
| Manufacturer: | Siemens |
| Series: | SINAMICS G110 |
| Model: | 6SL3211-0AB22-2UA1 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 2,2 |
| Current, А: | 11 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0-650 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-650 |
| Deceleration time, sec: | 0-650 |
| EMC filter: | – |
| Braking unit: | + |
| Analog input: | 1 |
| Digital input: | 3 |
| Analog output: | – |
| Digital output: | 1 |
| Relay output: | – |
| RS485 (Modbus RTU): | + |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10……+40 |
| Storage temperature, °С: | -40……+70 |
| Dimensions (W x H x D), mm: | 181х184х152 |
| Weight, kg: | 1,9 |
