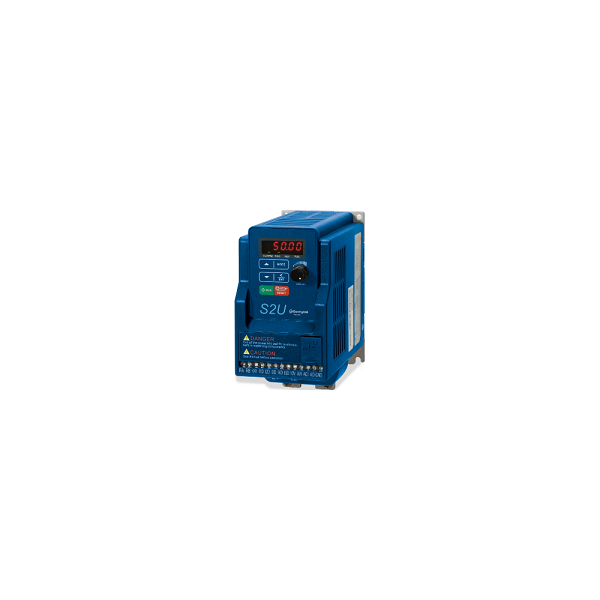

Intuitive and simple, but powerful and effective, the Bonfiglioli Vectron S2U compact inverter for efficient speed and torque control of electric motors. Inverters range is made of 2 frame sizes and kW rating from 0.20 kW up to 2.2 kW. The simple installation and use, together with connectivity and outstanding range of functions, make it the perfect drive for the control of those applications where productivity and short time to market are critical.
- Modbus RS485 communication built-in for one-to-one and one-to-many control
- Links with Profibus, Devicenet, CANopen, Ethernet (TCP/IP) through gateway
- Built-in standard keypad including potentiometer for easy speed adjustment
- Links with PC VPlus software through RJ45
- EMI filter built-in
- PID feedback control built-in
- Full protective functions
- Emergency stop function built-in complying with global standard
- Panel mounting by heatsink or Dinrail option
- JOG frequency
- Alarm history
- Short power loss override
- Output Short-Circuit protection
- Grounding fault protection
- DC braking injection
Specifications
| Manufacturer: | Bonfiglioli |
| Series: | S2U |
| Model: | S2U-230-S13F |
| Product Code: | S2US13F0001 |
| Application: | general purpose |
| Capacity, kW: | 2.2 |
| Current, А: | 10.5 |
| Main power supply, V: | 200-240 |
| Phase: | 1 |
| Output frequency, Hz: | 0-650 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| EMC filter: | + |
| Braking unit: | – |
| Analog input: | 1 |
| Digital input: | 5 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 118x144x147,3 |
| Weight, kg: | 1,8 |
