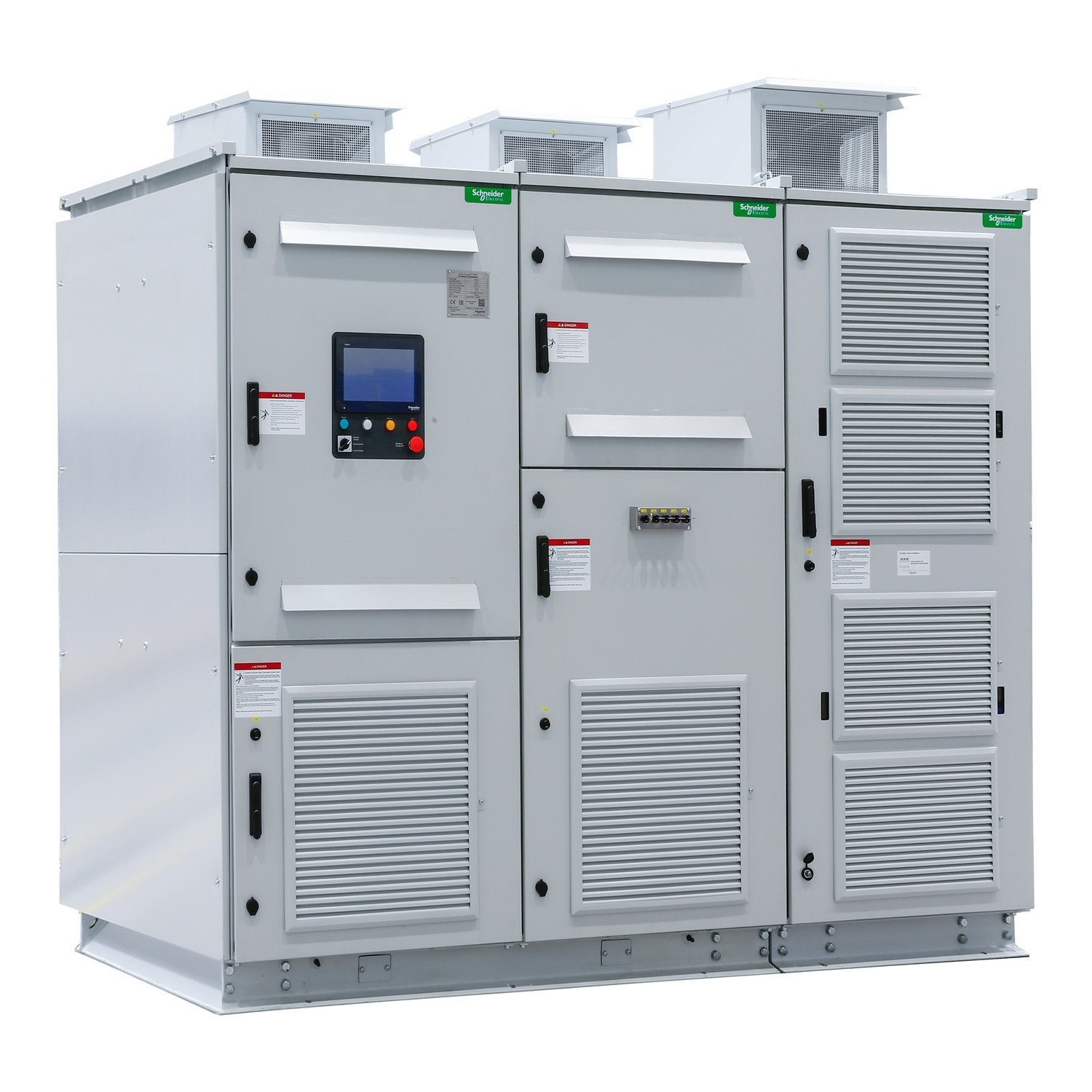

Medium Voltage Variable Speed Drive ATV6000 – 10 kV – 7420 kVA
Manufacturer: Schneider Electric
Part Number: ATV6000C742A1010NA3
Key Specifications
| Range of product | Altivar Process ATV6000 |
| Colour of enclosure | Light grey (RAL 7035) |
| IP degree of protection | IP31 conforming to IEC 60529 |
| [Us] rated supply voltage | 10 kV +/- 10 % |
| Supply frequency | 50 Hz +/- 5 % |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 3 s (normal duty) | 1.5 x In during 60 s (heavy duty) | 1.8 x In during 3 s (heavy duty) |
| Speed drive output frequency | 0.1…120 Hz |
| Frequency resolution | 0.01 Hz |
| Apparent power | 7420 kVA |
| Power factor | 96 |
| Motor power kW | 4740 kW for heavy duty | 5930 kW for normal duty |
| Continuous output current | 328 A heavy duty | 410 A normal duty |
| Maximum transient current | 615 A during 3 s (heavy duty) | 615 A during 3 s (normal duty) |
| Line current | 340 A heavy duty | 428 A normal duty |
| Power losses | 224.5 kW normal duty | 179.4 kW heavy duty |
| Net weight | 17913.0 kg |
| Overvoltage category | II conforming to IEC 61800-5-1 motor side | III conforming to IEC 61800-5-1 line side | III conforming to IEC 61800-5-1 low voltage connections |
