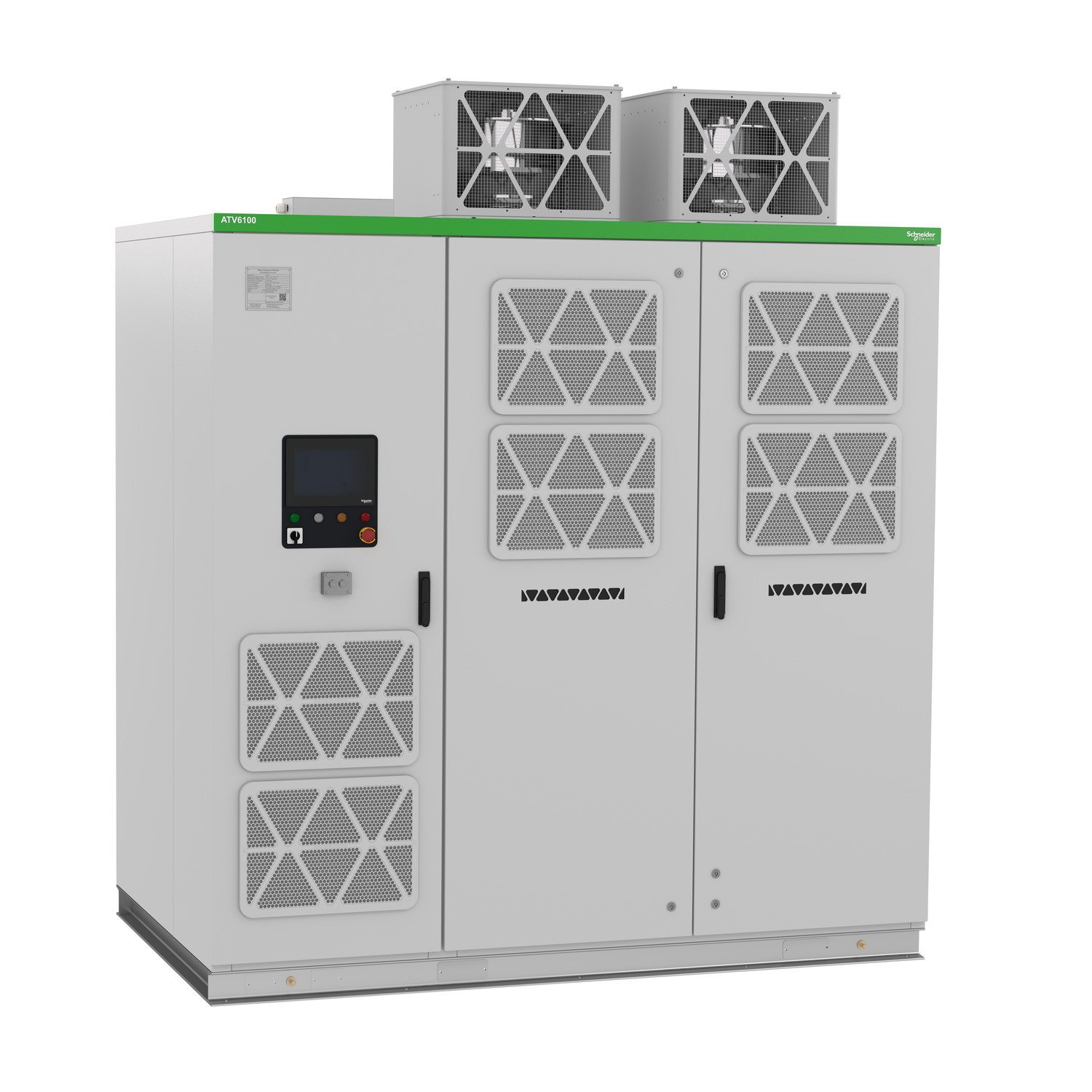

Medium Voltage Variable Speed Drive, Altivar Process ATV6100, 6.6kV, 4710kVA
Manufacturer: Schneider Electric
Part Number: ATV6100C471A6666NA
Key Specifications
| Range of product | Altivar Process ATV6100 |
| Colour of enclosure | Light grey (RAL 7035) |
| IP degree of protection | IP41 conforming to IEC 61800-5-1 (IEC 60529) |
| [Us] rated supply voltage | 6.6 kV (- 10…10 %) for 3 phases |
| Supply frequency | 50 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 3 s (normal duty) | 1.5 x In during 60 s (heavy duty) | 1.8 x In during 3 s (heavy duty) |
| Speed drive output frequency | 0.1…120 Hz |
| Frequency resolution | 0.01 Hz |
| Apparent power | 4710 kVA |
| Power factor | 96 |
| Motor power kW | 3770 kW for normal duty | 3010 kW for heavy duty |
| Motor power hp | 5052 hp for normal duty | 4036 hp for heavy duty |
| Continuous output current | 394 A normal duty | 316 A heavy duty |
| Maximum transient current | 472.8 A during 60 s (normal duty) | 474.0 A during 60 s (heavy duty) | 591.0 A during 3 s (normal duty) | 592.5 A during 3 s (heavy duty) |
| Line current | 412.1 A normal duty | 301.0 A heavy duty |
| Net weight | 10000 kg |
| Overvoltage category | III conforming to EN/IEC 61800-5-1 line side | II conforming to EN/IEC 61800-5-1 motor side | II conforming to EN/IEC 61800-5-1 low voltage control compartment | III conforming to EN/IEC 61800-5-1 low voltage connections |
