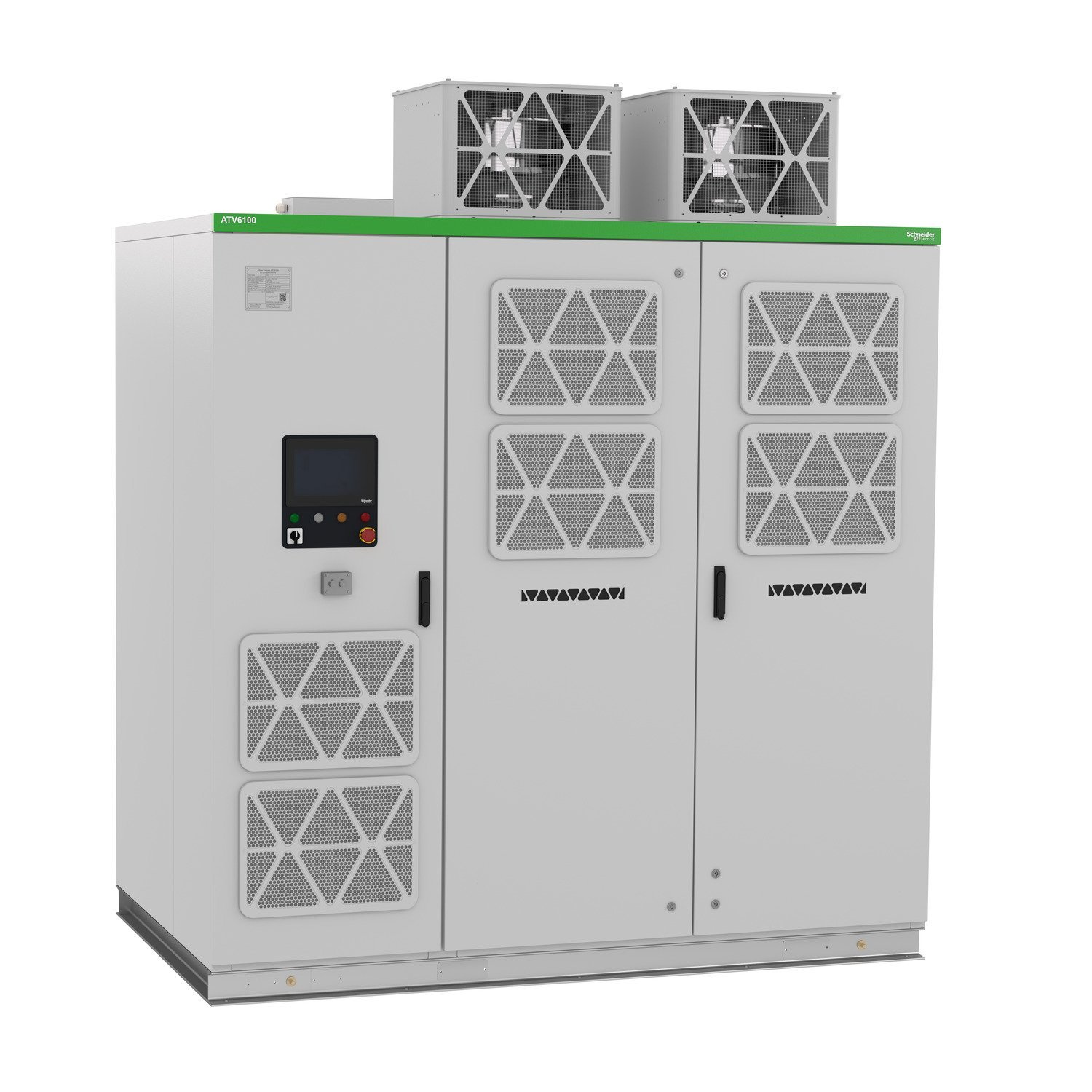

Medium Voltage Variable Speed Drive, Altivar Process ATV6100, 6.0kV, 6000kVA
Manufacturer: Schneider Electric
Part Number: ATV6100C600A6060NA
Key Specifications
| Range of product | Altivar Process ATV6100 |
| Colour of enclosure | Light grey (RAL 7035) |
| IP degree of protection | IP41 conforming to IEC 61800-5-1 (IEC 60529) |
| [Us] rated supply voltage | 6 kV (- 10…10 %) for 3 phases |
| Supply frequency | 50 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.2 x In during 60 s (normal duty) | 1.5 x In during 3 s (normal duty) | 1.5 x In during 60 s (heavy duty) | 1.8 x In during 3 s (heavy duty) |
| Speed drive output frequency | 0.1…120 Hz |
| Frequency resolution | 0.01 Hz |
| Apparent power | 6000 kVA |
| Power factor | 96 |
| Motor power kW | 4800 kW for normal duty | 3890 kW for heavy duty |
| Motor power hp | 6432 hp for normal duty | 5216 hp for heavy duty |
| Continuous output current | 552 A normal duty | 448 A heavy duty |
| Maximum transient current | 662.4 A during 60 s (normal duty) | 672.0 A during 60 s (heavy duty) | 828 A during 3 s (normal duty) | 840.0 A during 3 s (heavy duty) |
| Line current | 577.4 A normal duty | 428.0 A heavy duty |
| Net weight | 12385 kg |
| Overvoltage category | III conforming to EN/IEC 61800-5-1 line side | II conforming to EN/IEC 61800-5-1 motor side | II conforming to EN/IEC 61800-5-1 low voltage control compartment | III conforming to EN/IEC 61800-5-1 low voltage connections |
