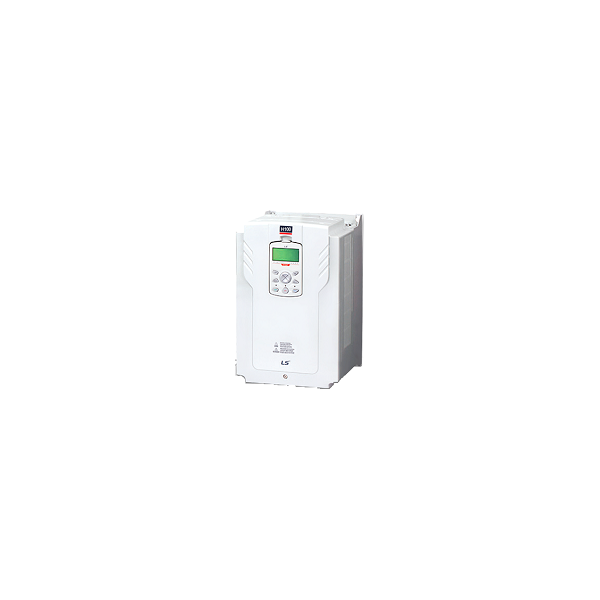

LSLV0370H100-4COFD LS H100 Drive

SKU: LSLV0370H100-4COFD Category: AC Drives/Variable Frequency Drives/LS Inverters (VFDs)/LS frequency inverter H100 pump and fan series Tags: AC Drives, fans, H100, LS, LS frequency inverter H100 pump and fan series, LS Inverters (VFDs), LSLV0370H100-4COFD, pumps, Variable Frequency Drives Brand: LS

Description
Additional information

Specifications

The LSLV-H100 sets the standard for the drive industry. Environmentallyfriendly water treatment and Fan and Pump systems incorporate the outstanding energy-saving benefits of the LSLV-H100 for fans and pumps. LSLV-H100 drives include a user-friendly keypad designed exclusively for the Fan and Pump market and satisfy various needs of customers.

RS-485 Capability is built-in
Modbus-RTU, Metasys N2
BACnet MS/TP is embedded as standard
LonWorks option can be added
Communication Module Exclusive for Fan and Pump-BACnet
Global Specifications Compliant-UL Plenum Rated
Side-by-Side Installation
Reduced Size
Soft Fill Control
Multiple-motor Control
Fire Mode

Manufacturer:	LS
Series:	H100
Model:	LSLV0370H100-4COFD
Product Code:	6731003600
Application:	pumps / fans
Capacity, kW:	37
Current, А:	75
Main power supply, V:	400
Phase:	3
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	120
Acceleration time, sec:	0-600
Deceleration time, sec:	0-600
EMC filter:	+
Braking unit:	+
PID:	PID-control
Operation temperature, °С:	-10…..+50
Storage temperature, °С:	-20…..+65
Dimensions (W x H x D), mm:	275x450x284
Weight, kg:	26

Weight	26 kg
