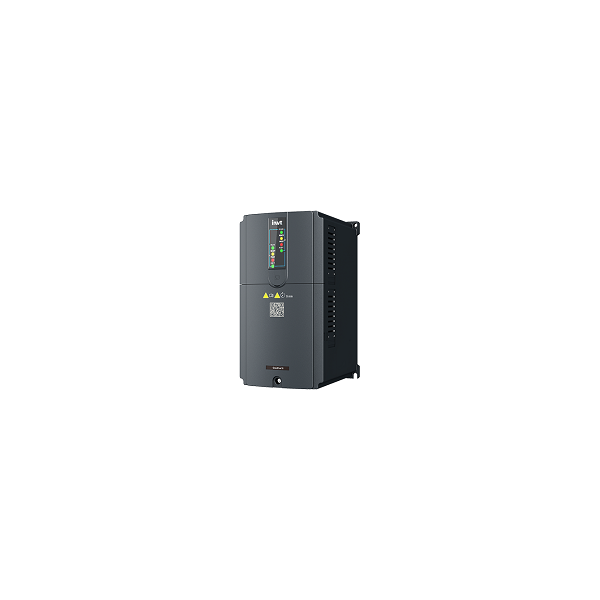

INVT GD18 series two-in-one VFDs achieve outstanding drive performance and provide excellent control functions by using the sensorless vector control (SVC) technology. The products support various hardware configuration, provide powerful software functions, and enchance structural design, improving the usability and reliability. Applications: textile, fountain, stone.
- Two inverting outputs
- Book-shaped structure
- Dual DSP
- Optional keypad
- Independent air duct
- Optional external EMI filter, meeting IEC61800-3 C3/C2 requirements
Specifications
| Manufacturer: | INVT |
| Series: | GD18 |
| Model: | GD18-004-4-2 |
| Application: | general purpose |
| Capacity, kW: | 4 |
| Current, А: | 9.5 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Braking unit: | – |
| Analog input: | 2 |
| Digital input: | 8 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | 2 |
| RS485 (Modbus RTU): | RS485 (Modbus RTU) |
| Starting torque: | 0.5Hz /150% (SVC) |
| PID: | PID control |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Dimensions (W x H x D), mm: | 138x224x190 |
