Frequency Converter
FC-102P18KT6E20HXTGXXXXSXXXXAXBXCXXXXDX

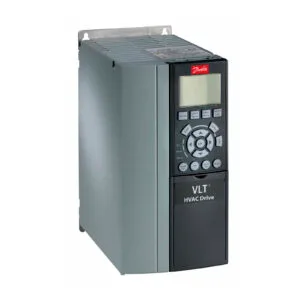

VLT® HVAC Drive FC-102
(P18K) 18.5 KW / 25 HP,
Three phase, 525 – 600 VAC,(E20) IP20 / Chassis
No RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: B3
No A Option, No B Option
No C1 option, No D option
Other options according to Model Code
Model code:
FC-102P18KT6E20HXTGXXXXSXXXXAXBXCXXXXDX
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated toventilation, heating, and refrigeration applications. With a wide rangeof powerful standard and optional features, the Drive provides thelowest overall cost of ownership.
| Gross weight | 11.61 Kilogram | ||
| Net weight | 10.59 Kilogram | ||
| Volume | 57.585 Liter | ||
| EAN | 5710108790516 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P18K | (P18K) 18.5 KW / 25 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 6 | 525 – 600 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | HX | No RFI Filter | |
| Brake – Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B3 | B3 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P18KT6E20HXTGX | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 18.5 | 18.5 | |
| Height [mm] | 399,0 | 399,0 | |
| Width w/ no C options [mm] | 165,0 | 165,0 | |
| Width w/ two C options [mm] | 225,0 | 225,0 | |
| Depth [mm] | 249,0 | 249,0 | |
| Depth with Option A/B [mm] | 262,0 | 262,0 | |
| kVA | 26.9 | 26.9 | |
| Power Loss NO [W] | 475 | 475 | |
| Power Loss NO [W] | 475 | 475 | |
| Continuous Current (NO) [A] | 28 | 28 | |
| Intermittent Current (NO) [A] | 30.8 | 30.8 | |
| Continuous Current (NO) [A] | 27 | 27 | |
| Intermittent Current (NO) [A] | 29.7 | 29.7 | |
| Calculated Gross Weight [kg] | 11.61 | ||
| Calculated Net Weight [kg] | 10.59 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P18KT6E20HXTGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
