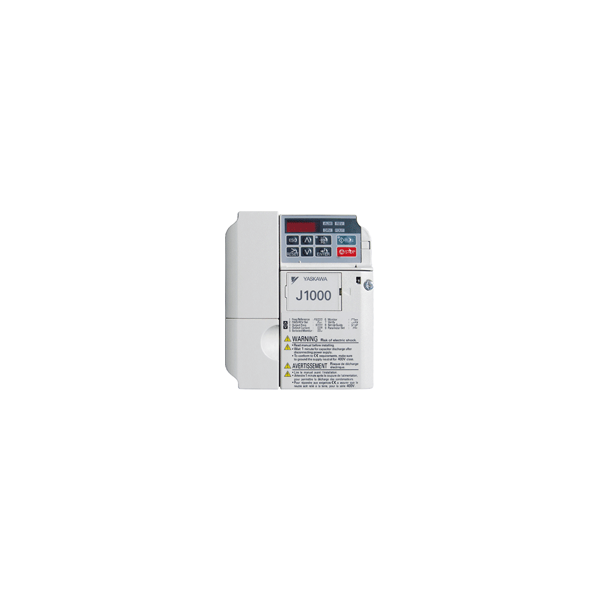

Frequency inverters J1000 compact series is easy to install and operate. Designed for use in conveyors, fans, pumps with low load.
- V/f control
- Starting torque 150%/3Hz
- Overload Capacity: 150% for 60 sec. (Heavy Duty), 120% for 60 sec. (Normal Duty)
- Overload monitor function 150% / 60 s
- Modbus 232/485 Communications (option)
- DriveWizardPlus software for configuration and accurate adjustment
Specifications
| Manufacturer: | Yaskawa |
| Series: | J1000 |
| Model: | CIMR-JC4A0002BAA |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 0,75 |
| Current, А: | 2.1 |
| Main power supply, V: | 400 |
| Phase: | 3 |
| Output frequency, Hz: | 0.1-400 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-6000 |
| Deceleration time, sec: | 0-6000 |
| EMC filter: | option |
| Braking unit: | – |
| Analog input: | 1 |
| Digital input: | 5 |
| Analog output: | 1 |
| Digital output: | – |
| Relay output: | 1 |
| RS485 (Modbus RTU): | RS485, (RS232-C option) |
| Starting torque: | 200% |
| PID: | + |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+60 |
| Dimensions (W x H x D), mm: | 108х128х99 |
| Weight, kg: | 1,2 |
