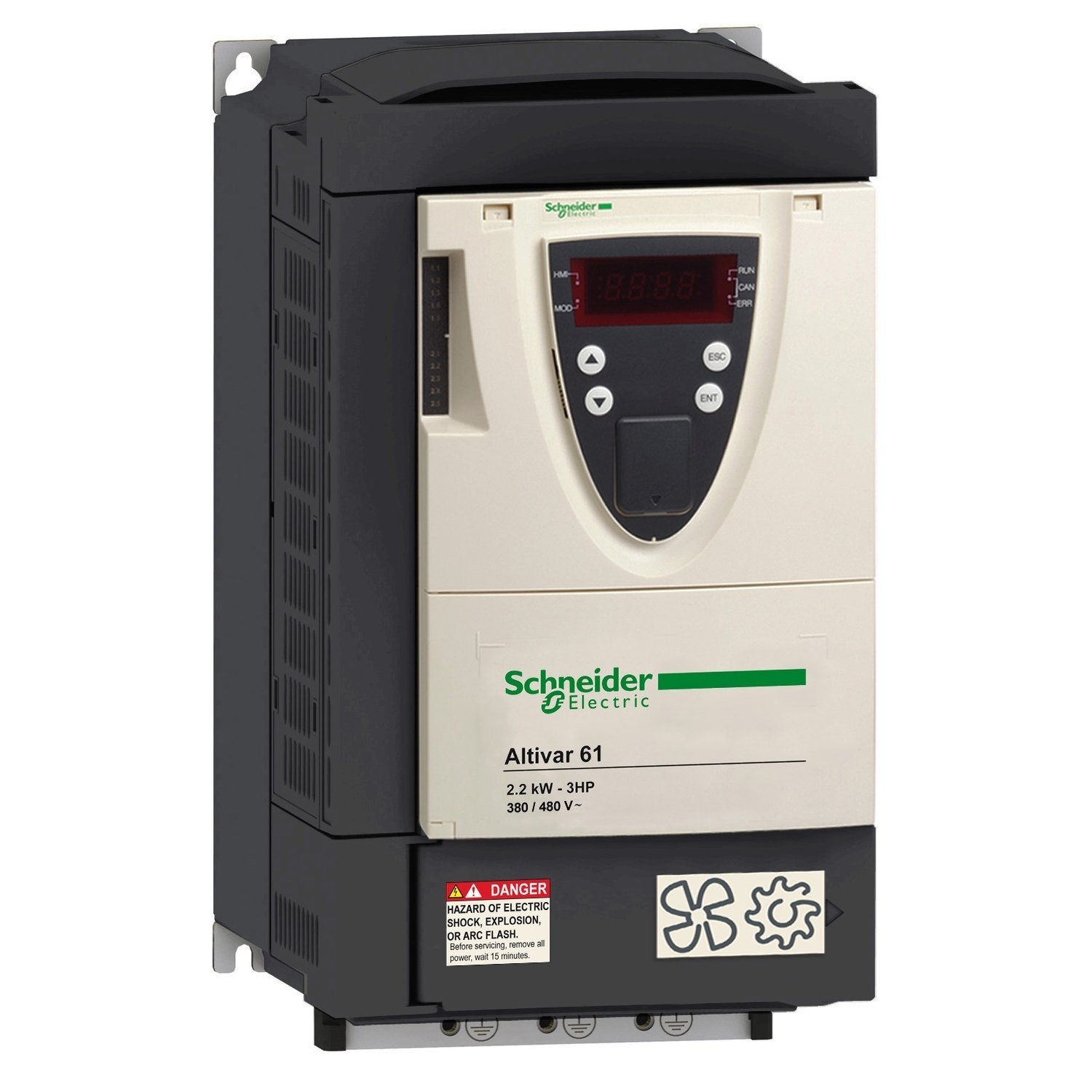

ATV61 2,2 kW 3HP 240V single phase EMC IP20 w/o graph term
Manufacturer: Telemecanique
Part Number: ATV61HU22M3Z
EAN: 3389119208253
Key Specifications
| Range of product | Altivar 61 |
| Motor power kW | 1.5 kW, single phase at 200…240 V | 2.2 kW, 3 phases at 200…240 V |
| Motor power hp | 2 hp, single phase at 200…240 V | 3 hp, 3 phases at 200…240 V |
| power supply voltage | 200…240 V – 15…10 % |
| supply number of phases | 3 phases | Single phase |
| Line current | 12.8 A for 240 V 3 phases 2.2 kW / 3 hp | 15 A for 200 V 3 phases 2.2 kW / 3 hp | 15.7 A for 240 V single phase 1.5 kW / 2 hp | 18.2 A for 200 V single phase 1.5 kW / 2 hp |
| Apparent power | 3.7 kVA at 240 V single phase 1.5 kW / 2 hp | 5.3 kVA at 240 V 3 phases 2.2 kW / 3 hp |
| Maximum transient current | 9.6 A for 60 s, single phase | 13.2 A for 60 s, 3 phases |
| Nominal switching frequency | 12 kHz |
| Switching frequency | 1…16 kHz adjustable | 12…16 kHz with derating factor |
| power supply voltage limits | 170…264 V |
| power supply frequency | 50…60 Hz – 5…5 % |
| power supply frequency limits | 47.5…63 Hz |
| Continuous output current | 11 A at 12 kHz, 230 V – 3 phases | 8 A at 12 kHz, 230 V – single phase |
| Output frequency | 0.1…599 Hz |
| Output voltage | <= power supply voltage |
| type of cable for mounting in an enclosure | With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC | With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Maximum switching current | R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms | R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms | R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms |
| Frequency resolution | Analog input: 0.024/50 Hz | Display unit: 0.1 Hz |
| Net weight | 34 kg |
| Package 1 Weight | 6.7 kg |
