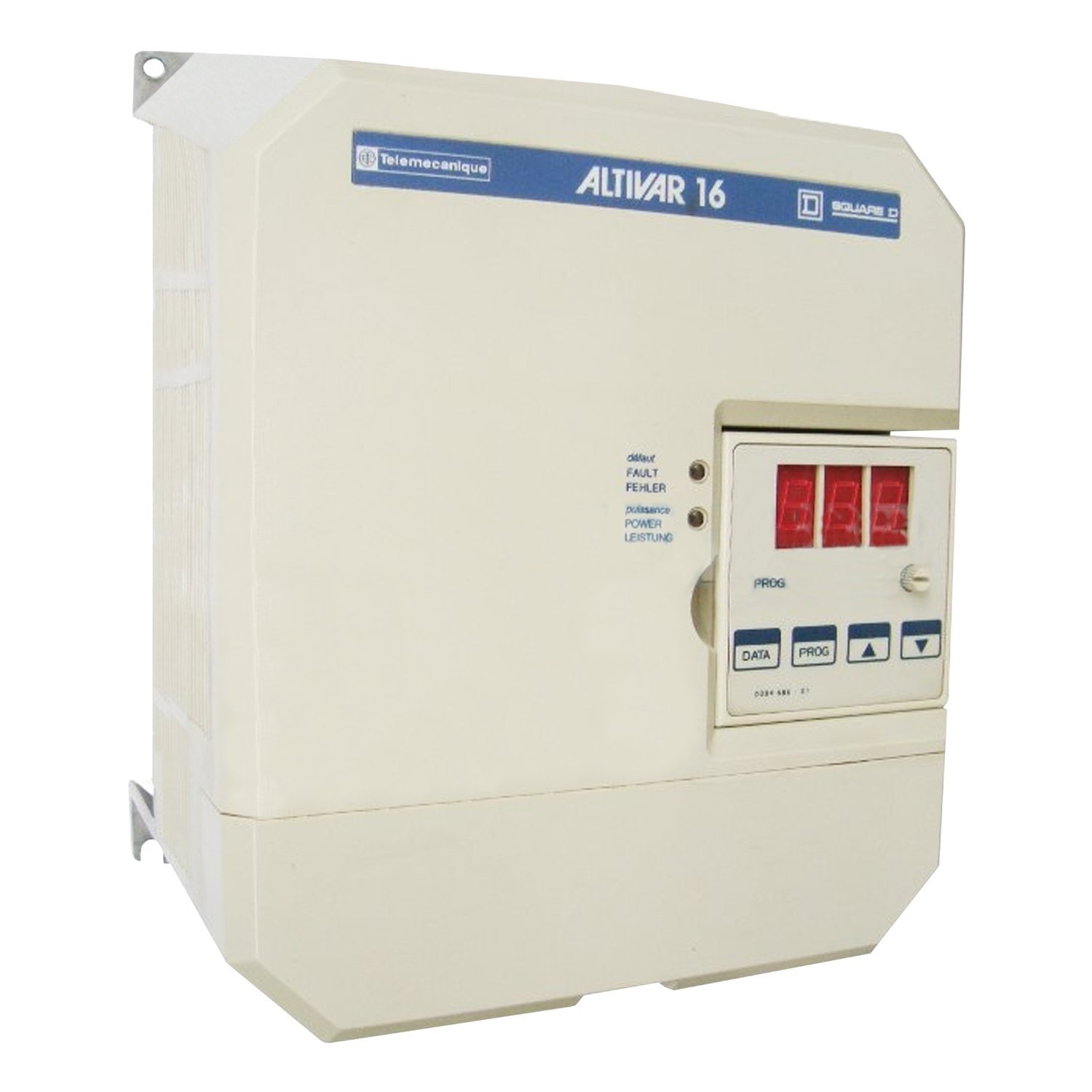

ALTIVAR16 1,8KVA 208/240V single phase – IP31
Manufacturer: Schneider Electric
Part Number: ATV16U18M2Q
EAN: 3389110531985
Key Specifications
| Range of product | Altivar 16 |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Supply frequency | 50/60 Hz +/- 5 % |
| Network frequency limits | 47.5…63 Hz |
| Network number of phases | 1 phase |
| Motor power kW | 0.75 kW |
| Motor power hp | 1 hp |
| Line current | 9.8 A at 200 V | 8.2 A at 240 V |
| Apparent power | 1 kVA at 230 V |
| Continuous output current | 4.8 A at 200 V | 4.8 A at 240 V |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 12…16 kHz with derating factor | 2…12 kHz adjustable |
| Output voltage | <= power supply voltage |
| IP degree of protection | IP31 conforming to EN 60530 | IP31 conforming to EN 61800-5-2 | IP31 conforming to IEC 60529 | IP31 conforming to IEC 61800-5-1 |
